Drilling Equipment For Water Well Different Depth and Hole Diameters

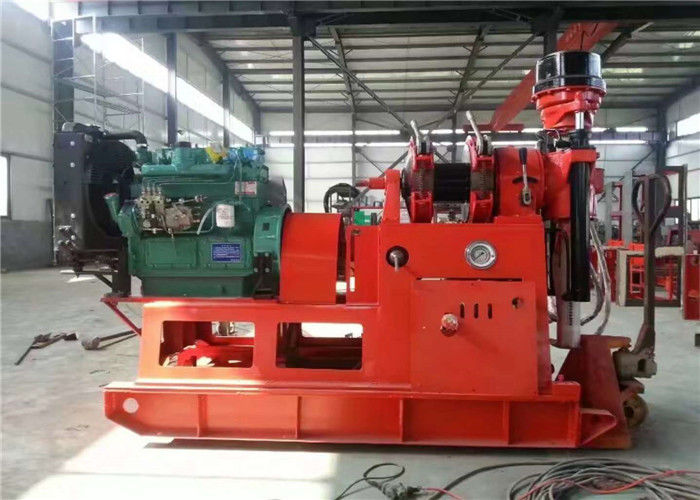

Large Image : Drilling Equipment For Water Well Different Depth and Hole Diameters

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	CE
Model Number:	ST200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD4800-6200
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	10 days after payment
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	2000sets /year

Contact Now

Detailed Product Description

Name:	Water Well Drilling Rig	Guarantee Time:	1 Year
Loading Port:	Tianjin	Weight:	600kg
OEM:	OK	Drilling Depth:	200M
Highlight:	water borehole drilling equipment , hydraulic water well drilling machine

Qualtiy Red Mounted Boring Borehole Water Well Drilling Rig

Competitive Advantage:

1. 12 years factory
2. ISO Certificate
3. Had export to Many countries
4. Professinal technical team
5. 180-720 days guarantee time

Drilling Equipment For Water Well Different Depth and Hole Diameters 0

Technical Specification

ST-200 Type
Drill		Swivel Head
Drilling depth	Max.200m	Spindle speed	(4-speed) 115 230 505 1010r/m
Hole diameter	Max.300m	Spindle stroke	450kmm
Drill rod diameter	42mm	Spindle pull-down	Max.15KN
Angle range	90-75	Spindle lifting capacity	Max. 25KN
Oil pump		Water pump
Model	YBC-20/125	Model	Horizontal reciprocating single-acting piston pump
Rated pressure	12.5Mpa	Working pressure	Max. 1.2Mpa
Flow speed	20ml/r
Rated speed	2000r/min
Hoist		Power(diesel)
Max. lifting capacity	20KN	Model(diesel engine	ZS1115
Hoisting drum revolution	20.39.85.170r/m	Rated power	16.2KW
Drum diameter	140mm	Rated speed	2200r/m
WEIGHT	AROUND 600KG
SIZE	17308601360mm

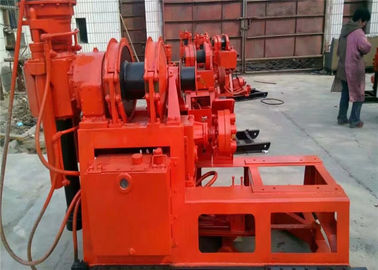

Drilling Equipment For Water Well Different Depth and Hole Diameters 1

Drilling Equipment For Water Well Different Depth and Hole Diameters 6
