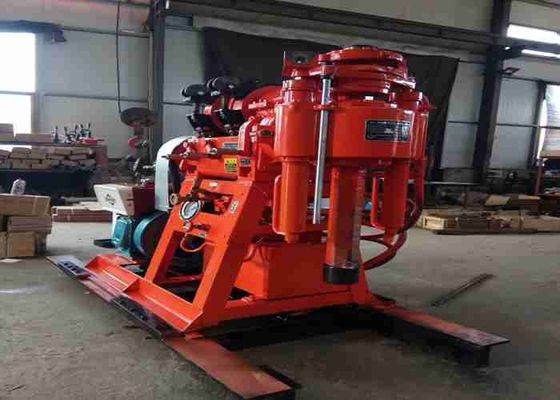

Easy Moving Core Borehole Drill Rig is high-speed vertical-shaft light drill for engineering exploration, and it has been widely applied to the geo - exploration of industry, civil building, railway, bridge, hydro power engineering, etc.
Types: triangular-tower well drilling rig, crawler well drilling rig and well drilling rig with automatic lifting tower.
Brief introduction:
1. 17 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: South Africa ,Russia, Malaysia, Peru, Pakistan, India, Vietnam, Sri Lanka, Kenya.
ST-200 Core Borehole Drill Rig Drilling ability:
a. Drill efficiency: 6-9 meters per hour for drilling soil
2-3 meters per hour for drilling rock
b. Geological structure: Soil, sandy, rock, hard rock,
c. Drill Diameter: 50mm, 100mm, 150mm ( based on customer detail requirement)
d. Max. Drill depth: 200 m
Technical data details:
| Type |
ST-200 |
| Drill |
Swivel Head |
|
Drilling depth
|
Max.200m |
Spindle speed
|
(4-speed)
115 230 505 1010r/m
|
|
Hole diameter
|
Max.300m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-20/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.2Mpa |
| Hoist |
Power(diesel) |
| Max. lifting capacity |
20KN |
Model(diesel engine |
ZS1115 |
| Hoisting drum revolution |
20.39.85.170r/m |
Rated power |
16.2KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| OUTSIZE |
1730*860*1360mm |
Spares parts list:
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
