Crawler Type Diamond Drilling Equipment For Core Drilling In Mining

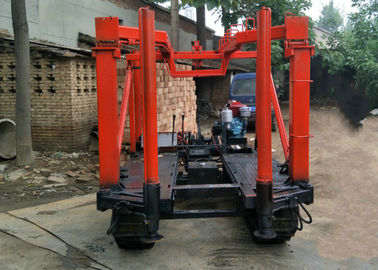

Large Image : Crawler Type Diamond Drilling Equipment For Core Drilling In Mining

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD4500-5800/SET
Packaging Details:	wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Name:	Tractor Mounted Core Drill Rig Portable Drilling Rig Machine For Investigation	Power Type:	Diesel Or Motor
Voltage:	220v	Dimension(LWH):	17308601360
Application:	Water Well,railways, Core	Type:	Small Core Drill Rig
Power Type:	Diesel	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Hydraulic Drill Machine	Feature:	High Drilling Efficiency
Highlight:	rock core drilling machine , geological drilling machine

Crawler Type Diamond Drilling Equipment For Core Drilling In Mining

Product Specifications

Attribute	Value
Name	Tractor Mounted Core Drill Rig Portable Drilling Rig Machine For Investigation
Power Type	diesel or motor
Voltage	220v
Dimension (L×W×H)	1730×860×1360
Application	water well, railways, core
Type	Small core drill rig
Power type	Diesel
After-sales service	Engineers available to service machinery overseas
Product name	Hydraulic Drill Machine
Feature	High Drilling Efficiency

Product Description

The 200m Core drilling rig features hydraulic crawler expansion chassis, ups and downs generally folding drilling mast, telescopic drilling pipe, vertical degree automatic detection adjustment, and hole deep digital display.

Hydraulic Portable 200m Water Well Drilling Machine Specifications

Specification	Value
Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59×4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power (diesel power)	15kw/2200r/min
Dimension	2800×950×1700mm

Drill Purpose

The Railway, Hydropower, Traffic, Bridges, Foundation and other buildings in the engineering geological investigation
The geological core drilling, geophysical survey
The small grout confucius, blast hole drill
The small water well drilling

Key Features

Low speed high torque hydraulic motor drive rotary device output torque
Cylinder propulsion provides more stable operation with significantly fewer failures than motor propulsion
Dual filtration system ensures diesel engine intake safety and prolongs engine life
Hydraulic system monitoring allows ready monitoring of pressure and boost pressure to ensure stable and efficient operation
Premium multi-way control valve from well-known brands offers superior performance with centralized, easy-to-operate handles
