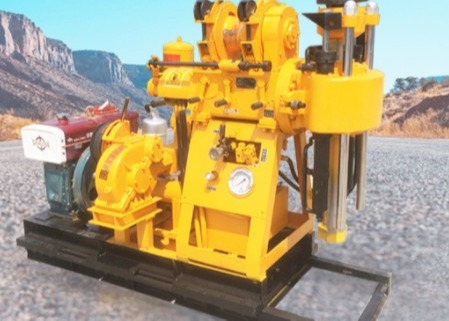

XY-1 Water Well Drilling Rig Machine
Product Description

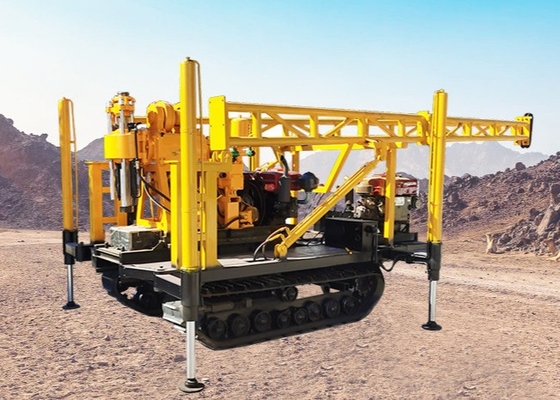

100 meters drilling depth ,100 mm hole diameter, be equipped with mud pump to works,main used for family and farm water well drilling,it main suitable for soil geology,also can drill soft rock,this water well drilling rig has different chassis,can add wheels,also can change with crawler chassis,if you want to move it far,can add it on a truck,we are factory,so we can accept customized,please contact us for more information.
Product Tech Parameter
| Drill Information |
Swivel Head |
|
Drilling depth
|
Max.100m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.100m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine |
ZS1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
12.1KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |
Product Features
1.Keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.Adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy operation,free maintenance.
4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.
Courtyard Drilling Attentions
1. Consider whether the well depth is reasonable
We should first investigate whether there are cables, sewers and other facilities under the ground, and avoid unnecessary damage.
2. Convenience, health and other issues should be considered.
After drilling the well, find some charcoal and throw it into the well with a bag and press it at the bottom of the well to absorb foreign toxins. After having water, you can put a few small fish down, which is a good way to test the safety of water quality.
3. The well should not be too deep. It should be above the ground and should be blocked with bricks and stones. It is better to have a cover, so as to prevent dirt from falling in, make people feel safer and avoid unnecessary dangers.
