Product Details:
Payment & Shipping Terms:
|
| Power Type: | Diesel | Usage: | Water Well |
|---|---|---|---|
| Dimension(L*W*H): | 6000x2200x2850 | Certification: | CE, ISO |
| Warranty: | 1 Year | Drilling Depth: | 600m |
| Color: | Customer Required | Hole Diameter: | 140-350mm |
| High Light: | water well borehole drilling rig,hydraulic water well drilling machine |
||

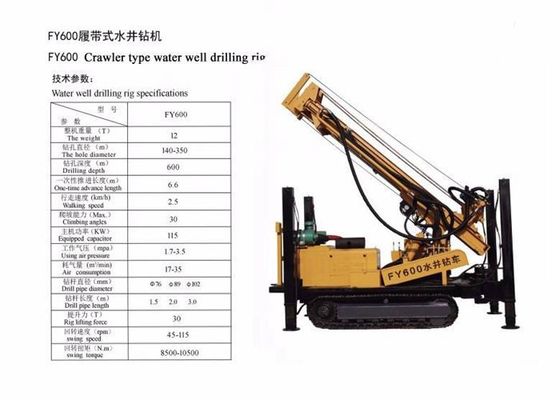

600m Depth Multifunctional Crawler Mounted Water Well Drilling Rig for Water Well Drilling
Product Advantage:
ST-600 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
| Technical Parameters of ST-600 Multifunctional Crawler Mounted Water Well Drilling Rig | |
| type | ST-600 |
| The weight | 12T |
| Dimension | 6000*2200*2850mm |
| The hole diameter | 140-350mm |
| Drilling depth | 600m |
| One-time advance length | 6.6m |
| Walking speed | 2.5KM/H |
| Climbing angles | 30 |
| Power | 115KW |
| Using air pressure | 1.7-3.5MPA |
| Air consumption | 17-35 |
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| Drill pipe diameter | 102mm,108mm,114mm |
| Rig lifting force | 28T |
| Swing speed | 45-115rpm |
| Swing torque | 8500-11000N.m |
