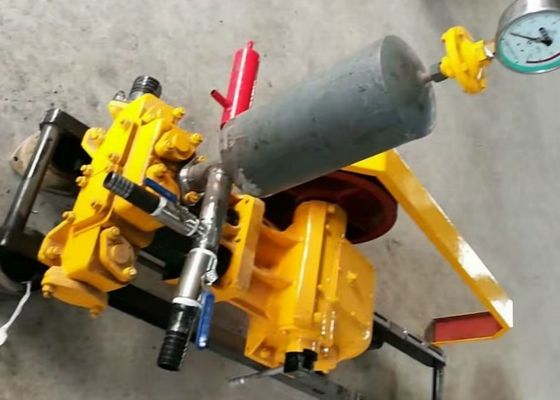

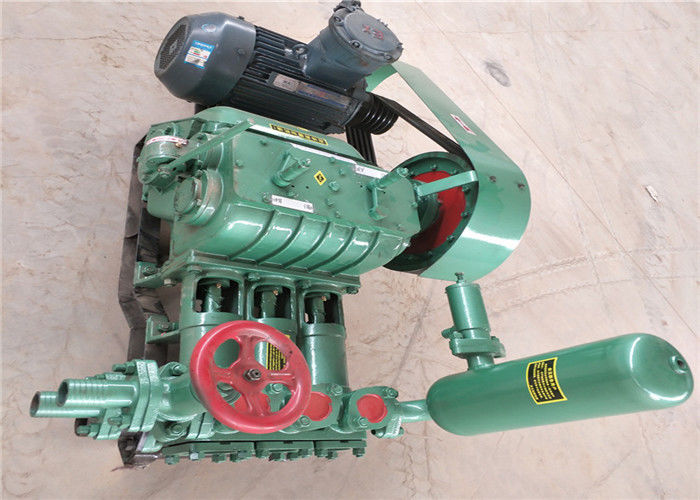

BW 250 Water Well Hole Drilling Mud Pump,Reciprocating Piston Pump
Product Introduction:
1.BW series slurry pump is widely used for grouting and mud jacking in engineering construction.
2.BW250 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine.
3.BW160/10 slurry pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth)etc.
Product Parameter
| stroke mm |
100 |
| Cylinder bore mm |
80 |
65 |
| Pump speed /min |
200 |
116 |
72 |
42 |
200 |
116 |
72 |
42 |
| flow L/min |
250 |
145 |
90 |
52 |
166 |
96 |
60 |
35 |
| pressure MPa |
2.5 |
4.5 |
6 |
6 |
4 |
6 |
7 |
7 |
| power KW |
15 |
| Volumetric efficiency % |
83 |
| Total efficiency % |
70 |
| Pitch diameter of V-belt pulley mm |
410 |
| Type and groove number of V-belt pulley |
Type b * 5 groove |
| Input speed rpm |
500 |
| Water absorption height m |
2.5 |
| Inlet Size mm |
76 |
| Push pipe diameter mm |
51 |
| Overall dimension mm |
1000*995*650 |
| weight kg |
500 |
BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.
- Installation and commissioning
- Training and education for operators and maintenance personnel
- Regular preventive maintenance
- 24/7 technical support
- On-site troubleshooting and repairs
- Supply of genuine spare parts
- Upgrades and retrofits
