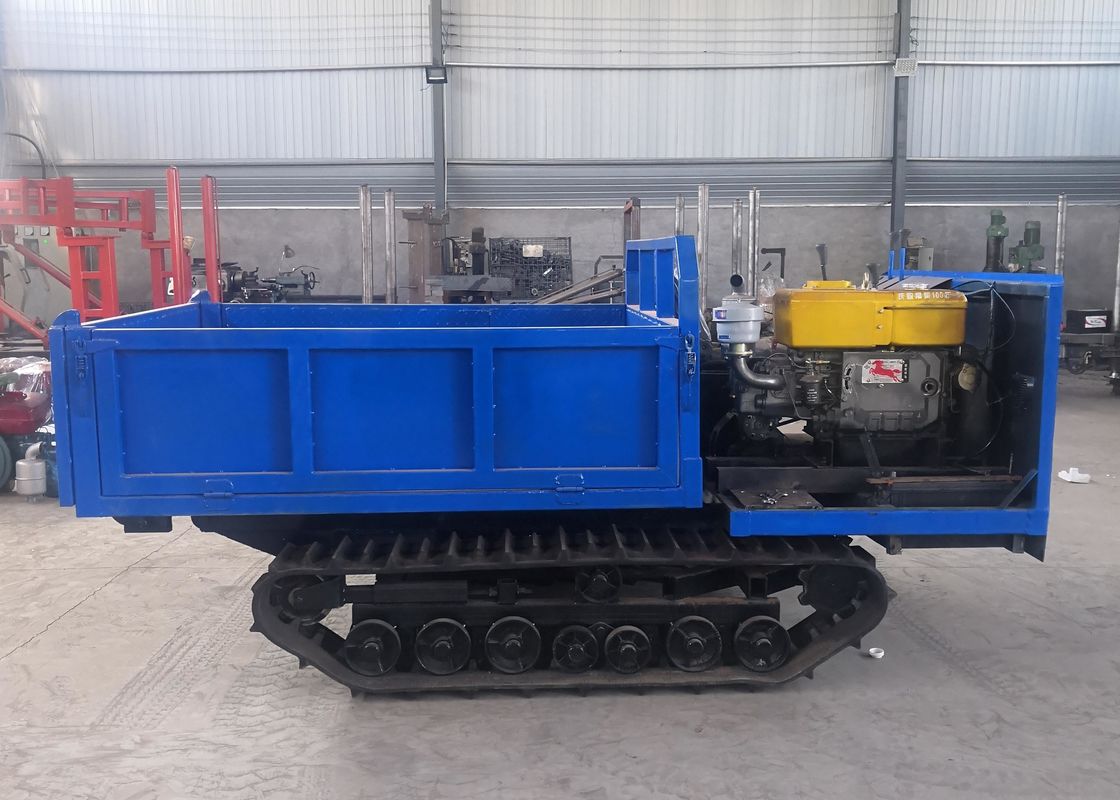

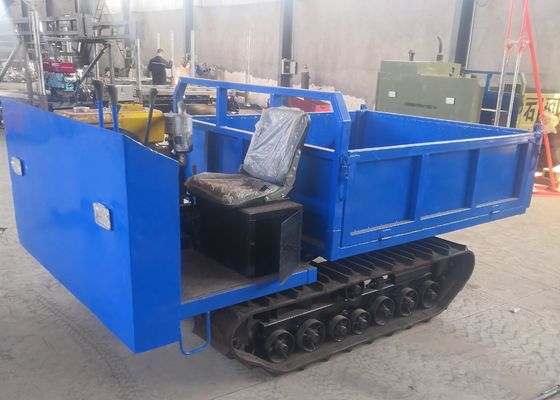

Small Crawler Mounted Track Transporter for Industry Construction
Product Introduction
1. Crawler transport dump trucks can adapt to complex and harsh road conditions such as paddy fields, swamps, muddy field roads, rugged mountain roads, soft grasslands and deserts, wet ice and snow, and are widely used in agricultural, forestry, orchard transportation, freight yard loading, water conservancy construction, infrastructure projects, and mining sites.
2. Suitable for complex road conditions such as swamps, riverbanks, deserts, paddy fields, tropical rainforests, snow, and ice.
3. A tracked slope transport vehicle used for agricultural slope transportation, which can carry goods such as grains, fruits, fertilizers, etc. that need to be transported on the slope
Product Tech Data
| Type : 2T/2.5T |
Bucket size: 1930*1700*500 mm |
| Size: 3050*1700*1470mm |
Crawler material: Rubber material |
| Track ground length: 1350mm |
Loading &unloading method: Hydraulic dump |
| Motor size: 186 |
Gear type: drawbar |
| Gear: +3 forward gear+1 reverse gear |
The height from the bottom of the bucket to the ground: 620 mm |
| Steering method: Clutch brake steering |
Start method: Electric start |
| Standing slope angle: 35 degree |
Crawler Width size: 1630 mm |
Characteristics
1. Easy to operate, with full range of gears, low load-bearing and grounding pressure, capable of handling deep mud pits, water pools, and complex stone road surfaces.
2. Tracked vehicles have a vehicle size that is suitable for crossing terrain compared to regular transport vehicles, and can easily pass through narrow mountains, rocks, forests, and buildings.
3. Small turning radius, flexible and adaptable to narrow terrain, reducing the cost of road construction.
4. Equipped with electric start, centralized handle, easy to operate.
5. Strong traction, good climbing and gripping performance, and strong transportation capacity.
The Application of tracked transport vehicles
Crawler transport vehicles are mainly used to transport non removable objects, such as heavy machinery such as excavators, loaders, and harvesters, as well as to transport food, fruits, fertilizers, etc. on agricultural slopes.
The design features of tracked transport vehicles make them particularly suitable for working in complex road conditions, including but not limited to swamps, riverbanks, deserts, paddy fields, tropical rainforests, snowy and icy terrain. These vehicles have the characteristics of sufficient power, low fuel consumption, strong traction, good climbing and grip performance, small turning radius, flexible maneuverability, and can adapt to the operational needs of narrow fields, reducing the cost of road construction. In addition, the tracked transport vehicle is equipped with electric start, centralized operation of the handle, hydraulic take-off and landing, and self unloading functions, which reduce labor intensity and improve transportation efficiency.
