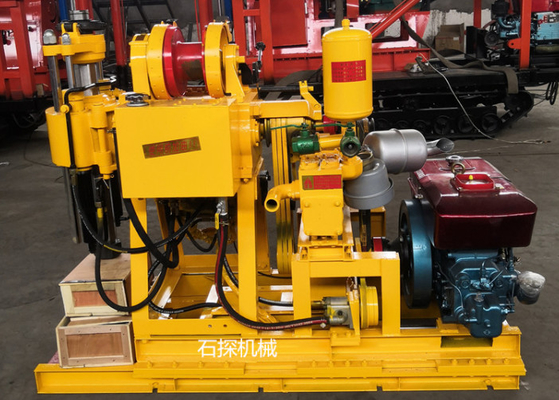

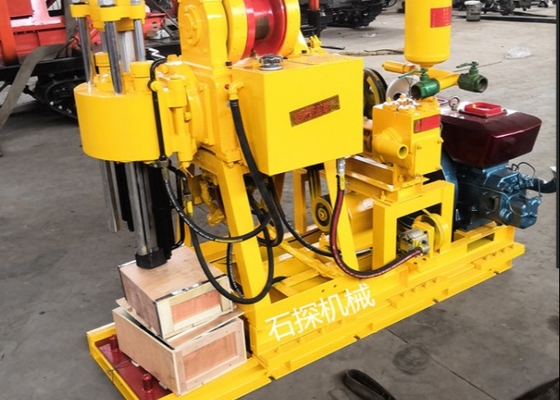

OEM 200 Meters Depth Drilling Rig, Customized GK 200 Water Well Drilling Rig Machinery
GK 200 water well drilling rig machine Information:
GK200 drilling rig is suitable for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.It is widely used and hydraulic feeding , water source and other similar engineering drilling holes.
GK 200 water well drilling rig machine tech data:
| Drilling Rig |
| Drilling diameter(mm) |
75,91,110,130,150,300 |
| Drilling depth (m) |
200,150,100,70,50,30 |
| Drill pipe diameter (mm) |
42,50 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1730 * 860 * 1360 (mm) |
| Rig weight (except engine) |
700 |
| Mobile device |
| Moving length |
350mm |
| Leave distance |
300mm |
| Gyrator |
| Spindle speed (four gear) (r/min) |
115,230,505,1010 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
20 |
| Reel speed (r/min) |
20,39,85,170 |
| Reel circumferential speed(m/s) |
0.172,0.345,0.738,1.476 |
| Reel diameter(mm) |
140 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
40 |
| Brake diameter(mm) |
278 |
| Brake band width (mm) |
50 |
| Oil pump |
| Oil pump type |
YBC -20/125 |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-2500 |
| Diesel engine or motor |
| Diesel engine |
1115 |
| Rated power (KW) |
16.2 |
| Rated speed (r/min) |
2200 |
| Rated pressure(Mpa) |
12.5 |
| Motor type |
Y160M - 4 |
| Rated power (KW) |
11 |
| Rated speed (r/min) |
1460 |
GK 200 water well drilling rig machine Features:
1. The drill adopts mechanical transmission, with simple structure and easy maintenance and operation.
2. The drilling rig is equipped with water brake device, which can control the tripping speed, reduce the wear of drum, brake belt and other parts, the impact force of lifting and tripping.
3. Technical improvement is made on the original drilling rig. The shaft diameter device is added in the clutch part to enhance the power of the driving shaft, and the gear in the gearbox of the drilling rig is also improved in material and technology on the original basis.
4. It is applicable to deep hole drilling projects such as coalfield geology, hydrogeology, metal deposits, non-metal deposits and natural gas, with strong practicability, operability and universality. It can meet the process requirements of diamond drilling, cemented carbide drilling and rope core drilling.
5. The drilling rig can be equipped with motor or diesel engine for users to choose according to the operating environment or conditions.
GK 200 water well drilling rig machine application:
It has the advantages of light weight, compact structure, good disassembly performance and convenient handling. It can be disassembled and moved in mountainous areas. Because it is equipped with a pair of rubber wheels, it can be used to move the construction hole position in cities and other flat areas
Our Company Main Products
We are specializing in the production and processing of core drilling rigs, crawler drilling rigs, various crawler chassis, various types of mud pumps, various crawler transport vehicles and other products. It is one of the excellent manufacturers of similar products in North China with strong technical force
