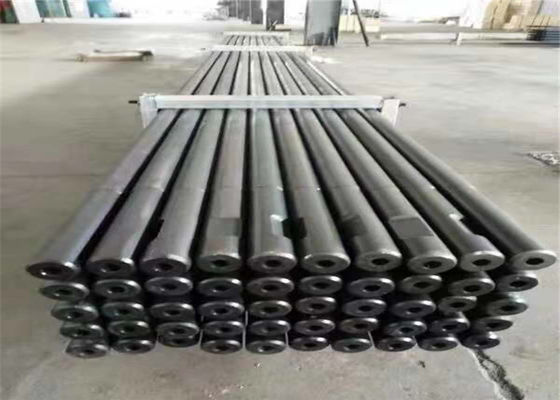

Easy Connect #89 Carbon Steel Drill Extension Rod For Water Water Well Drilling Rig

Name: Easy Connect #89 Carbon Steel Drill Extension Rod For Water Water Well Drilling Rig
Brand: ShiTan
SKU: #89
Price: 28 USD
Availability: InStock
Rating: 4.8 (180 reviews)

Large Image : Easy Connect #89 Carbon Steel Drill Extension Rod For Water Water Well Drilling Rig

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO
Model Number:	#89

Payment & Shipping Terms:

Minimum Order Quantity:	200PCS
Price:	USD28-50/PC
Packaging Details:	plastic
Delivery Time:	5 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000PCS/month

Contact Now

Detailed Product Description

Weight:	23-35kg/pc	Length:	1-3M/pc
Material:	Carbon Steel	Type:	Round Or Trigone
Usage:	Water Well Drilling
Highlight:	integral drill rods , tapered drill rod

Easy Connect #89 Carbon Steel Rock Drill Rod For Water Water Well Drilling Rig

Advanced product system

DTH drill pipes play a significant role in all DTH drilling, regardless type of rock, hole depth or drill rig.DTH drill pipe is
mainly used in the drilling blasting hole, guardrail hole, mountain reinfrcement, anchoring and other engineering holes in
mines,quarris, high ways, railways and so on.
Feature:
1.Pipe body : cold draw seamless pipe . so the pipe have the accurate size , good centralizer.
2.Thread connector :Heat and Nitrogen treatment , so the pipe is more durable and easier to load and unload .
3.Friction welding .

Technical Parameter of Steel Rock Drill Rod

Product name	Friction welding drill pipe
Diameter	50-159mm
Length	1000mm to 6000mm
Wall thickness	5.5/6.5mm/7.5/8.5mm/10mm
Material	High manganese steel
Thread	API REG
Application	Well-drilling,coal drilling,quarrying
Advantage	High performance and high pressure

Drill rod details

Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.

According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.

Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.

Specification :

1.Reliable working performance

2.Outside Size:60mm,76mm,89mm,114mm,140mm

3.Thread:API Reg

4.Wall Thickness: 5.5/6.5mm/7.5/8.5mm/10mm
