50-100 Meter Diesel Mining Drill Rig , Portable Core Drilling Machine

Name: 50-100 Meter Diesel Mining Drill Rig , Portable Core Drilling Machine
Brand: Shitan
SKU: XY-1
Rating: 4.5 (116 reviews)

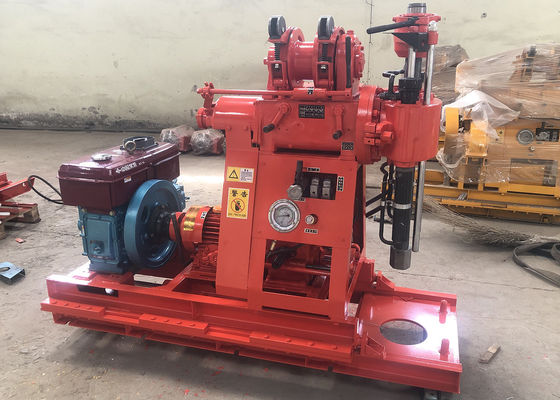

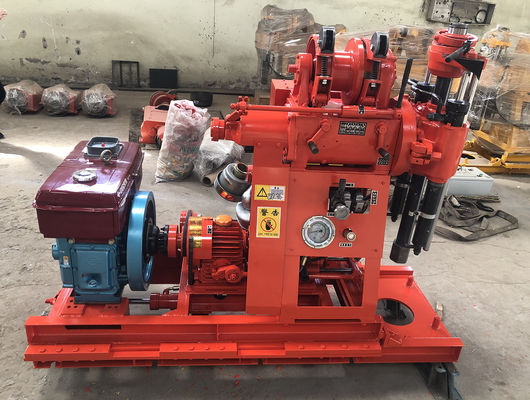

Large Image : 50-100 Meter Diesel Mining Drill Rig , Portable Core Drilling Machine

Product Details:

Place of Origin:	China
Brand Name:	Shitan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Water Well Drilling	Fuel:	Diesel
Geological:	Soil, Rock, Hard Rock,	Drilling Depth:	100 Meter
Type:	Portable Type	Usage:	Home Drilling
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Drilling Diameter:	75-300mm
Highlight:	water well borehole drilling rig , hydraulic water well drilling machine

50-100 Meter Portable Water Well Drilling For Home Drilling

Product description

1. It is portable type drilling machine, easy operation, two or three people can do the drilling themselves.

2. This type water well drilling machine is widely used in home drilling, basically they can get one well in two days( for drilling 100 meters )

3. It is also used in geological investigation, to make sure the buliding foundation more stable.

Product technical data

XY-1 Type
Drill		Swivel Head
Drilling depth	Max.100	Spindle speed	142,285,570(r/min)
Hole diameter	Max.110m	Spindle stroke	450kmm
Drill rod diameter	42mm	Spindle pull-down	Max.15KN
Angle range	90°~75°	Spindle lifting capacity	Max. 25KN
Oil pump		Water pump
Model	YBC-12/80	Model	Gear oil pump
Rated pressure	12.5Mpa	Working pressure	0.7-1.2Mpa
Flow speed	8ml/r
Rated speed	800-2500r/min
Hoist		Power(diesel)
Max. lifting capacity	10KN	Model(diesel engine	1105
Hoisting drum revolution	55,110,220(r/min)	Rated power	12.1KW
Drum diameter	145mm	Rated speed	2200 r/min
WEIGHT	500kg
SIZE	164010301440mm

Product Features

1. The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

2. A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.

3. Handle concentration, easy operation.

4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.

5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains

Precautions for operation of water well drilling rig:

1. Before drilling, the drilling rig must strictly follow the hole position, orientation, angle, hole depth, etc. for construction
2. Ensure that the drill pipe is not blocked, bent, or cracked during installation.
When using clean water drilling, water should not be supplied before drilling, and pressure drilling can only be carried out after the water returns. Sufficient flow rate should be ensured, and dry drilling is not allowed. When there is a lot of rock powder in the hole, the water volume should be increased to extend the pump start time, and drilling can only be stopped after effectively flushing the hole.
4. During the drilling process, the distance must be accurately measured. Generally, the drill pipe must be measured every 10 meters of drilling or when changing the drilling tool, the hole depth must be verified, and relevant records must be kept. 5. Check if there is any overheating or abnormal sound in the gearbox, shaft sleeve, horizontal and vertical shaft gears, etc. When a problem is found, it should be stopped immediately for inspection and the cause should be found and dealt with in a timely manner. Do not leave the problem unsolved, as it accumulates over time and causes rapid mechanical damage, with high maintenance costs.
