100m Geotechnical Drill Rig for SPT Sample Collection 22 HP

100m Geotechnical Drill Rig for SPT Sample Collection 22 HP
100m Geotechnical Drill Rig for SPT Sample Collection 22 HP
video play

Large Image :  100m Geotechnical Drill Rig for SPT Sample Collection 22 HP

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: XY-1 Drilling Rig Type: Rotary Drilling Rig
Power Type: Diesel Usage: Water Well And Exploration
Dimension(L*W*H): 2.1*0.9*1.3m Weight: 610kg
Certification: ISO9001 Drilling Depth: 110m
Highlight:

dth drilling machine

,

down the hole drill rig

XY-1 Drilling Rig - 100m Geotechnical Drill Rig for SPT Sample Collection (22 HP)
Attribute Value
Product Name XY-1 Drilling Rig
Type Rotary Drilling Rig
Power Type Diesel
Usage Water Well and exploration
Dimension (L×W×H) 2.1×0.9×1.3m
Weight 610kg
Certification ISO9001
Drilling Depth 110m
Product Overview

The XY-1 Borehole Drilling Machine is a high-quality, durable rotary drilling rig designed for creating borewells up to 100m deep. Constructed from sturdy steel, this machine withstands heavy-duty drilling operations while maintaining efficiency and reliability.

Key Features
  • Powerful 22 HP hydraulic diesel engine
  • Maximum drilling depth: 100m (110m capacity)
  • Drilling diameter: 100mm
  • Compact dimensions: 2.1×0.9×1.3m
  • Lightweight at 610kg for easy transportation
  • Includes BW 160 Mud Pump
  • Available in Yellow, Blue, and Red color options
  • 12-month warranty
  • ISO9001 certified
Technical Specifications
Product Name XY-1 Borehole Drilling Machine
Drilling Rod Diameter 50mm
Overall Size 5-6 CBM
Material Steel
Packing Wooden Box
Applications

The XY-1 drilling rig excels in various applications:

  • Water Well Drilling: Ideal for domestic, agricultural, and industrial water wells
  • Geotechnical Investigation: Capable of drilling through diverse soil and rock formations
  • Mineral Exploration: Extracts core samples for analysis up to 100m depth

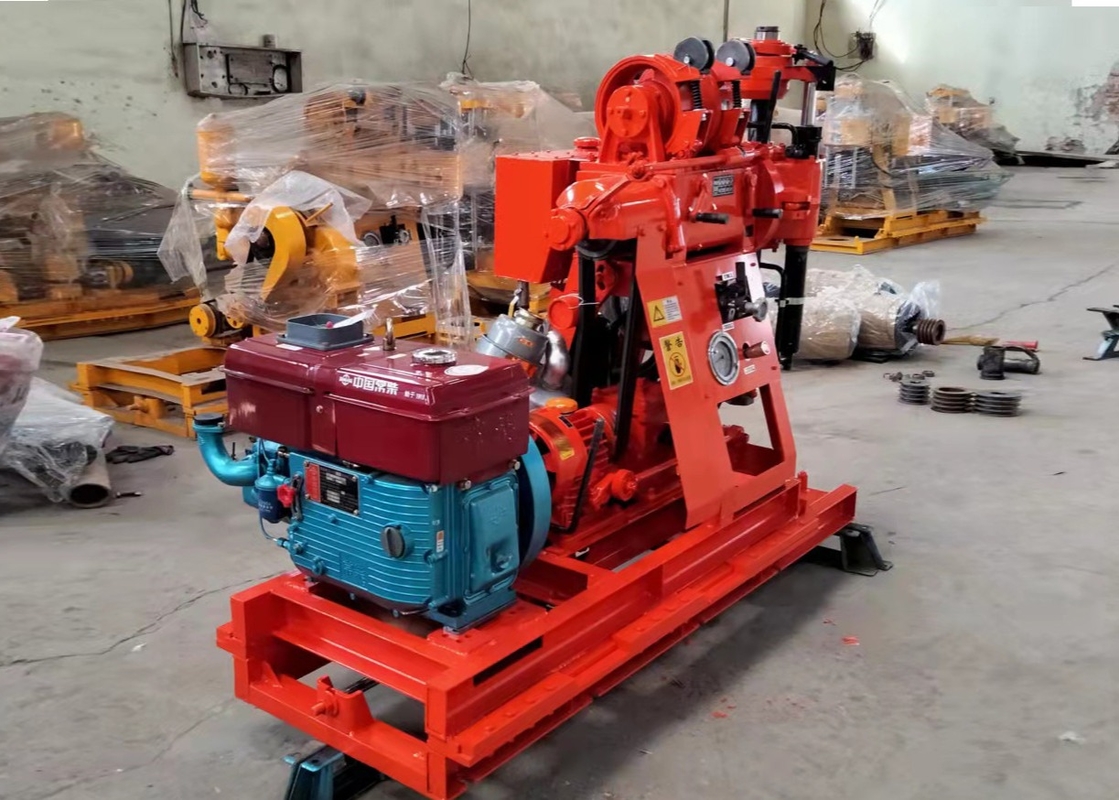

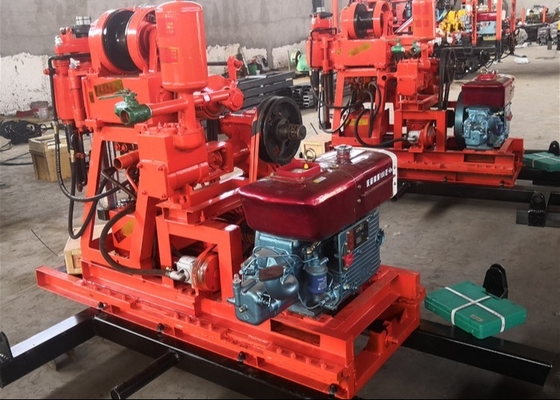

Product Images
100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 0 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 1 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 2 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 3 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 4 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 5 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 6 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 7 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 8 100m Geotechnical Drill Rig for SPT Sample Collection 22 HP 9
Shipping & Packaging

The XY-1 Drilling Rig is securely packed in wooden boxes for protection during transport. We offer both domestic and international shipping options:

  • Domestic: Ground transportation via trucks or trains
  • International: Air or sea freight based on destination and urgency
Frequently Asked Questions
What is the brand name of this product?
The brand name is Shitan.
What is the model number?
The model number is XY-1.
Where is this product manufactured?
Manufactured in Jinzhou, Hebei, China.
What is the maximum drilling depth?
100 meters standard capacity (110m maximum).
Is this machine suitable for all soil types?
Yes, including clay, sand, and rock formations.
