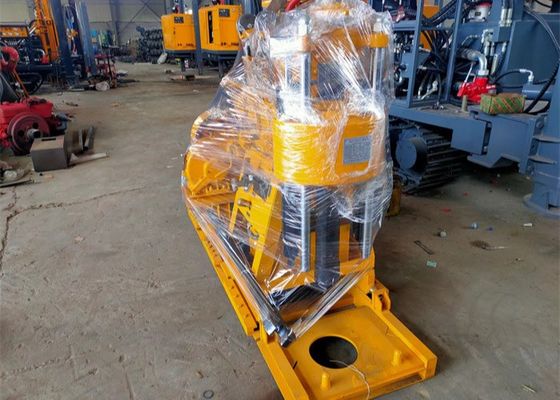

150 Meter Soil Test Drilling Machine Equipped for Soil Sampling





Product Description:



This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.



Product Parameters:



Drilling depth(m)

150

Maximum opening diameter(mm)

219

The final hole diameter(mm)

73

Rod diameter(mm)

42/50

Spindle speed (r/min)

140/295/470/790/1010

Spindle stroke(mm)

450

Hoisting capacity (kn)

14

Steel wire diameter(mm)

9.3

Maximum pressure (mpa)

1.2

Working pressure (mpa)

0.7

displacement(l/min)

150

Hydraulic pump pressure (mpa)

1.2

Hydraulic pump rotation speed (r/min)

1800

Matched driving power (diesel engine and motor)

S1105 diesel engine and 11kw motor



Product Application:



1.XY-1a is a low speed large torque portable hydraulic feed drilling machine

2.Drilling rig used in the railway, electricity, transportation, bridges, buildings, engineering geology of dam Foundation of exploration

3.Geological core drilling and exploration

4.Small Grouting Confucius, blast hole drilling

5.Small water well drilling.



Main features:



1.With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.

2.The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.

3.Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.

4.The handle centered, convenient operation.

5.The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

150 Meter Soil Test Drilling Machine Equipped for Soil Sampling150 Meter Soil Test Drilling Machine Equipped for Soil Sampling150 Meter Soil Test Drilling Machine Equipped for Soil Sampling150 Meter Soil Test Drilling Machine Equipped for Soil Sampling



Service Custom Attributes

Highlight

soil testing drilling rig

,

soil investigation machine

Condition:
New
Type:
Soil Test Drilling Machine
Power Type:
Diesel
Model Number:
ST-150
Usage:
Water Well Drilling
Voltage:
380V
Power(W):
11kw
Dimension(L*W*H):
2750*950*1600mm
Weight:
500kg
Certification:
ISO CE
Drilling Depth:
150m
Warranty:
1 Year
