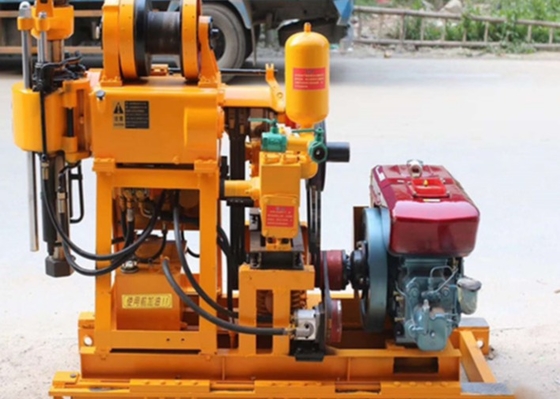

GK 200 Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment

GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment
GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment

Large Image :  GK 200 Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment

Product Details:
Place of Origin: China
Brand Name: JINZHOUSHITAN
Certification: ISO
Model Number: GK 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation

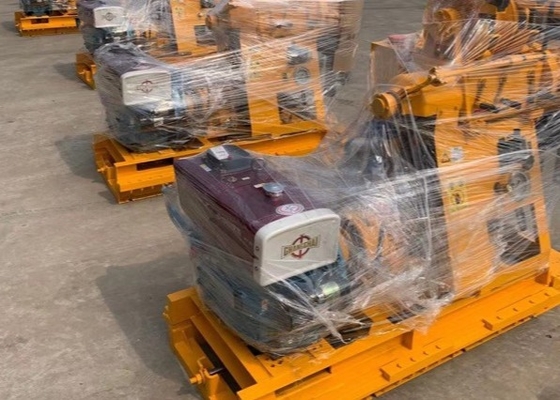

Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: GK 200 Core Drill Rig For Exploration Type: Rotary Drilling Rig
Power Type: Diesel Engine Usage: Mining Exploration,Coring
Voltage: 220V Weight: 950 Kg
Warranty: 1 Year Drilling Depth: 200 Meters
Hole Diameter: 300 Mm After-sales Service Provided: Video Technical Support
Color: Red,yellow ,blue Feature: High Drilling Efficiency
High Light:

rock core drilling machine

,

geological drilling machine

GK 200 Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment





GK 200 Core Drilling Rig Product Description:



It is  a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.



GK 200 Core Drilling Rig Product Parameter:



Drill rig specification
Drilling depth 200m
Drilling Diameter 91mm,110mm,130mm,150mm,300mm
Drilling rod diameter 50mm
Drilling Angle 90°-75°
Dimensions(L×W×H) 1750×850×1300 (mm)
Weight 880kg/set
Swivel Head
Spindle Speed 115, 230, 505, 790, 1010 r/min
Spindle stroke 450mm
Spindle Dia. Φ59mmx53mmx4350mm Kelly rod
Upward displacement speed of drilling vertical spindle 0.05m/s
Downward displacement speed of drilling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Vertical maximum output torque 1.5KN.m
Hoist
Max. Lifting capacity(single rope) 20KN.m
Lifting rotating speed 20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels) 0.17; 0.35; 0.73; 1.5m/s
Drum Diameter 140mm
Wire rope diameter 9.3mm
Wire rope capability 40m
Gear Pump
Model YBC-12/125
Rated pressure 12.5Mpa
Displacement 20ml/r
Rated Speed 2000r/min
Mud Pump
Type BW-160
Displacement 160 L/min
Working pressure 1.3 Mpa
Stroke 85mm
Drive shaft speed 951 r/min
Drive power 5.88KW
Diameter of inlet pipe 45mm
Diameter of outlet pipe 38mm



GK 200 Core Drilling Rig Product Advantages:



1.Small order is aceptable.

2.Good service and low price.

3.Fast reply.

4.12 Months quality guarantee.

5.Any third party testing is accepable.



The specific steps of soil sampling method are as follows:



1. Distribution: samples shall be taken according to the soil type and the distribution of crop varieties, and according to the different soil fertility. The sampling points are distributed in zigzag or snake shape, which should be as uniform and random as possible.

2. Determine the sampling position and depth: the sampling position and depth shall be determined according to the thickness of the cultivated layer. Generally, the sampling depth is 0-20cm



Shitan Machinery FAQ



Q1: - Can i request customize service?

A: Yes, dear sir, we can also customize voltage, material, colour, nameplate etc., and meet your other special request.

Q2: - What is the advantage of your factory?

A: Here we're your "Chinese Partner", accurate market sharing, reliable investment suggestion, select right machine, quick problem solver, reliable after-sales service, minimize purchasing risk.

Q3: - What service do you supply after order?

A: Your order will be fully tracked including production, professional quality control, strong logistics teamwork working and experienced customs documents preparation, you can get One-stop service from us.

Q4: - How to solve the after-sales problem?

A: You can send us a video or pictures to explain the problem, later we can give you a solution to solve it, if it is our responsibility, we will 100% in charge of it and try our best to make you satisfied, we pursue long term cooperation always.



GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment 0

GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment 1

GK 200  Mineral Core Drill Rig 300 mm Hole Diameter Diesel Engine Hydraulic Exploration Engineering Equipment 2
