4-6Mpa Pressure Diesel Drilling Mud Pump On Hard And Soft Formation
Product Specifications
| Attribute |
Value |
| Model Number |
BW200 |
| Structure |
Triplex mud pump |
| Power |
Mechanical, Diesel/Electric/Hydraulic |
| Fuel |
Diesel |
| Pressure |
High Pressure, 4-6Mpa |
| Theory |
Reciprocating Pump |
Drilling Mud Pump for Hard and Soft Formations

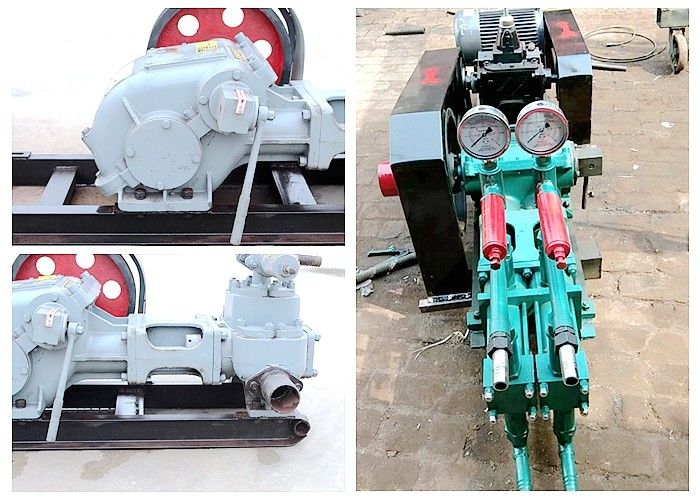

This portable mud pump is a horizontal three cylinder reciprocating single acting piston pump with four flow and pressure settings. Designed for versatility and durability, it offers excellent performance in various drilling applications.
Key Features:
- Compact structure with lightweight design for easy transportation
- Multiple power options: hydraulic motor, electric motor, or diesel engine
- Innovative design incorporating new materials and technologies
- Standardized components for improved maintenance and parts availability
- Extended service life with high reliability
- Versatile applications in railway, water, metallurgy, construction, and geological exploration
Technical Parameters
| Technical Parameter |
Model BW150 Mud Pump |
Model BW-250 Mud Pump |
Model BW320-Z Mud Pump |
| Max Traffic |
150L/min |
150L/min |
320L/min |
| Maximum Pressure |
70kg/cm² |
80kg/cm² |
100kg/cm² |
| Driving Power |
7.5kw |
15kw |
30kw |
| Inlet Pipe Diameter |
50mm |
75mm |
75mm |
| Outlet Pipe Diameter |
32mm |
50mm |
50mm |
| Drilling Hole Depth |
Hard alloy drilling <1000m |
Diamond drilling <1500m
Hard alloy drilling <1500m |
Diamond drilling <1800m |
| Outline Dimension |
|
1100×995×650mm |
1280×855×750mm |
| Weight |
560kg |
760kg |
1000kg |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
