Popular Type Drilling Rig Mud Pumps, Hydraulic High Pressure Triplex Pump
Product Specifications
| Attribute |
Value |
| Model Number |
BW200 |
| Structure |
Piston Pump |
| Usage |
Water |
| Application |
Sewage |
| Power |
Hydraulic |
| Fuel |
Diesel |
| Pressure |
High Pressure |
Product Description

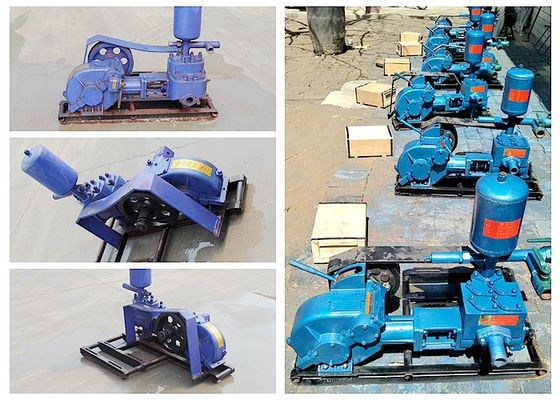

Popular Type Drilling Mud Pump on the Market for Sale
The main characteristics are the high pressure, lift much, less energy consumption, easy operation, high quality and durable and easy to move, especially for mountain terraces of irrigation.
BW200 mud pump are mainly used for irrigation agricultural machinery. As well they are also the main equipment of the geological survey, the main role in the process of core drilling boreholes. The mud pump is to supply fluid (mud or water), making it circulate during drilling and to carry rock waste back to the ground to lubricate drill bits and drilling tools with cooling in order to achieve and maintain the bottom hole clean.
Technical Parameters
| Parameter |
Value |
| TYPE |
Duplex cylinder double-acting Piston pump |
| Piston Diameter (mm) |
80.65 |
| Stroke length (mm) |
85 |
| Discharge capacity (l/min) |
200;125 |
| Working pressure (kg/sq.cm) |
4;6 |
| Power |
18HP (diesel engine) or 11KW (electric motor) |
| Suction pipe diameter (mm) |
65 |
| Discharge pipe diameter (mm) |
37 |
| Dimensions (L×W×H) (mm) |
1050×630×820 |
| Mass (kg) |
300 |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
