BW 160 Industrial Construction Horizontal Drilling Mud Pump Lightweight With Diesel Engine

Large Image : BW 160 Industrial Construction Horizontal Drilling Mud Pump Lightweight With Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	BW 160 Industrial Construction Horizontal Drilling Mud Pump	Model Number:	BW160
Usage:	Water Well,Exploration	Application:	Sewage
Power:	Diesel	Fuel:	Diesel
Pressure:	High Pressure	Displacement:	200L/min
Material:	Steel	Place Of Origin:	Hebei,China
Highlight:	portable mud pump , reciprocating mud pump

BW 160 Industrial Construction Horizontal Drilling Mud Pump

Product Specifications

Attribute	Value
Product Name	BW 160 Industrial Construction Horizontal Drilling Mud Pump
Model Number	BW160
Usage	Water Well, Exploration
Application	Sewage
Power	Diesel
Fuel	Diesel
Pressure	High Pressure
Displacement	200L/min
Material	Steel
Place of origin	Hebei, China

Product Description

The BW 160 is a horizontal, triplex, single acting reciprocation piston pump with diesel motor power. Designed for simplicity and convenience, it offers both close range and remote control operation.

Key Features

Compact structure with smooth operation and high output pressure
Long service life with stable performance and good general durability
Car transmission system provides six different discharge and pressure settings
Primarily used for drilling fluid supply in core drilling applications up to 2000m
Compatible with various drilling fluids including mud, water, and coal water

Technical Specifications

Type	Horizontal type single-cylinder Double-action pump
Cylinder Diameter	95 mm
Stroke	85 mm
Reciprocate Times	165 times/minute
Displacement	160 L/min
Pressure	1.3 MPa
Volume Efficiency	80%
Input Speed	951 rotations/min
Transmission Shaft Speed	R180/Z5.5kw
Input Pipe Diameter	50mm
Output Pipe Diameter	40mm
Mass (including engine)	200 kg
Dimensions	1110 × 725 × 965 mm

Product Advantages

Compact, lightweight design with attractive appearance
Multiple power options: hydraulic motor, electric motor, or diesel engine
Incorporates innovative design concepts, structures, materials, and processes
High standardization of components reduces part variety
Extended service life with highly reliable wearing parts

Piston Cup Replacement Method

To replace the piston cup: Remove the limit sleeve and pressure plate, close the U-shaped valve at the oil cylinder end, and rotate it perpendicular to the cylinder. Select face control on the panel and manually inch the piston back into the water tank. Use an Allen key and crescent wrench to disassemble the piston, then remove the piston body with a rope or other tool to complete disassembly.

Product Overview

The BW-160 mud pump is a horizontal single cylinder double acting piston quantitative pump, primarily used for conveying flushing fluid during engineering geological exploration drilling operations. Its compact size, light weight, and portability make it ideal for various drilling applications.

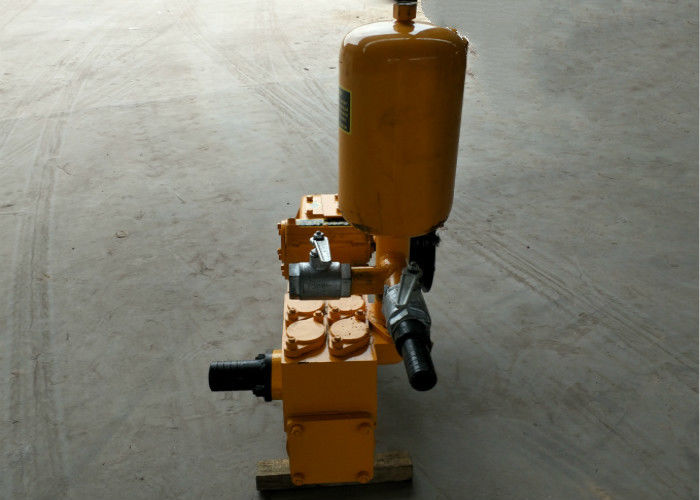

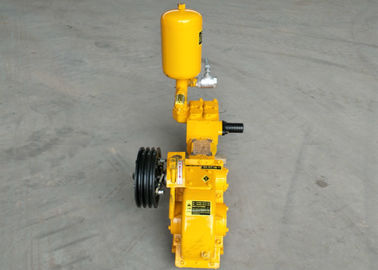

Product Images
