BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine

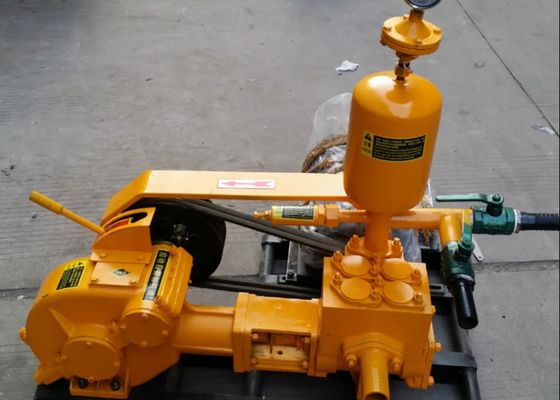

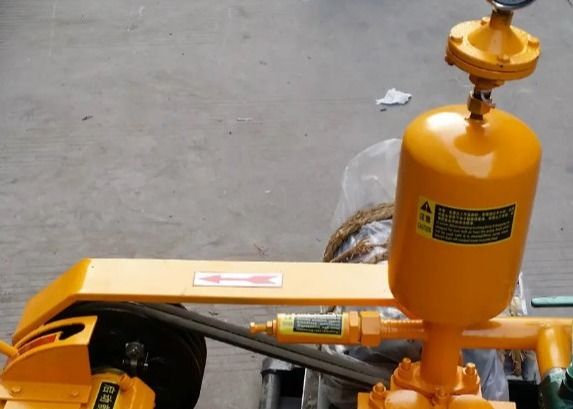

Large Image : BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW160

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Model Number:	BW 160 Drilling Mud Pump	Structure:	Piston Pump
Usage:	Drill Mud Pump	Application:	Heavy Duty Slurry Pump
Power:	Electric, 30Kw	Fuel:	Electric
Pressure:	High Pressure	Standard Or Nonstandard:	Standard
Theory:	Reciprocating Pump	Pump Type:	Small Mud Sucking Pump
Highlight:	portable mud pump , reciprocating mud pump

BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine

Product Specifications

Attribute	Value
Model Number	BW 160 Drilling Mud Pump
Structure	Piston Pump
Usage	Drill mud pump
Application	Heavy duty slurry pump
Power	Electric, 30Kw
Fuel	Electric
Pressure	High Pressure
Standard or Nonstandard	Standard
Theory	Reciprocating Pump
Pump Type	Small mud sucking pump

Single Cylinder Double Acting BW 160 Mud Pump

The pump has the advantages of simple structure, small size, light weight and convenient maintenance. It can be used for engineering drilling, geological survey, small-diameter water well drilling, etc. To supply flushing liquid into the hole, and the deepest alloy and diamond for 600 m drilling rig can be matched. The pump consumes less energy, flexible operation, high quality and durability, good decomposability and easy to relocate.

Technical Specifications

Specification	Value
Type	Horizontal type single-cylinder Double-action pump
Cylinder Diameter	95 mm
Stroke	85 mm
Reciprocate Times	165 times/minute
Displacement	160 L/min
Pressure	1.3 MPa
Volume Efficiency	80%
Input Speed	951 rotations/min
Transmission shaft speed	R180/Z5.5kw
Input pipe diameter	50mm
Output pipe diameter	40mm
Mass (including the engine)	200 kg
Dimensions	1110725965 mm

Product Features

Compact structure, light weight, small size, beautiful appearance, can be driven by hydraulic motor, motor and diesel engine
Incorporates new concepts, structures, materials and processes in design
Improved standardization, serialization and generalization of key components
Wearing parts have long service life and high reliability

Main Advantages
