Hydraulic 200m Drilling Machine In Mining Chinese Manufacturers

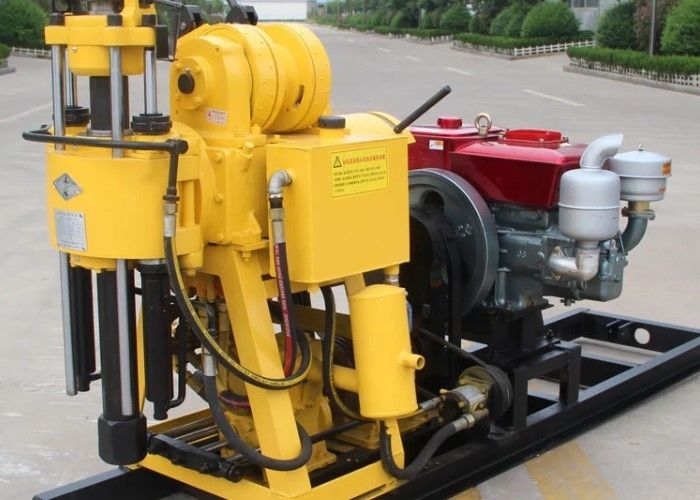

Large Image : Hydraulic 200m Drilling Machine In Mining Chinese Manufacturers

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	ST-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Condition:	New	Type:	Core Drilling Rig
Drilling Depth:	200m	Drilling Diameter:	75-200mm
Feature:	High Drilling Efficiency	Supplying Ability:	5set/month
Highlight:	soil sample testing equipment , soil testing drilling rig

Hydraulic 200m Drilling Machine for Mining Applications

Product Specifications

Attribute	Value
Condition	New
Type	Core Drilling Rig
Drilling Depth	200m
Drilling Diameter	75-200mm
Feature	High Drilling Efficiency
Supplying Ability	5 sets/month

Product Overview

The ST-200 series hydraulic water well drilling rig is designed for various applications including water well drilling, geological exploration, concrete structure drilling, foundation investigation, river levee work, grouting operations, and civil well construction.

Technical Parameters

Parameter	ST130	ST180	ST200
Drill hole depth	130m	180m	200m
Maximum opening diameter	220mm	220mm	325mm
Final hole diameter	75mm	75mm	75mm
Drill pipe diameter	Φ42mm,50mm,60mm	Φ42mm,50mm,60mm	Φ42mm,50mm,60mm
Borehole inclination	90°-75°	90°-75°	90°-75°
Power (diesel engine)	13.2/2200kw/r/min	13.2/2200kw/r/min	15/2200kw/r/min
Vertical spindle speed	142,285,570r/min	130,480,730,1045r/min	130,480,730,1045r/min
Vertical stroke	450mm	450mm	450mm
Single line lifting capacity	20KN	21KN	25KN
Single rope lifting speed	0.41-1.64m/s	0.35-2.23m/s	0.12-0.95m/s
Drum diameter	Φ140mm	Φ140mm	Φ140mm
Diameter of wire rope	Φ9.3mm	Φ9.3mm	Φ13mm
Wire rope capacity	27m	27m	35m
