Professional Water Well Drilling Rig Machine Diesel Engine Power

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Professional Water Well Drilling Rig Machine Diesel Engine Power

Professional Water Well Drilling Rig Machine Diesel Engine Power
Professional Water Well Drilling Rig Machine Diesel Engine Power
video play

Large Image :  Professional Water Well Drilling Rig Machine Diesel Engine Power

Product Details:
Place of Origin: China
Brand Name: ShiTan
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Features: Easy Operation / Free Maintaining Type: Water Well , Hard Rock
Power Type: Diesel Usage: Water Well
Voltage: 220v Application: Water Well , Core Sample
After-sales Service Provided: Engineers Available To Service Machinery Overseas Weight: 980KG
Highlight:

water borehole drilling equipment

,

hydraulic water well drilling machine

Professional Water Well Drilling Rig Machine Diesel Engine Power

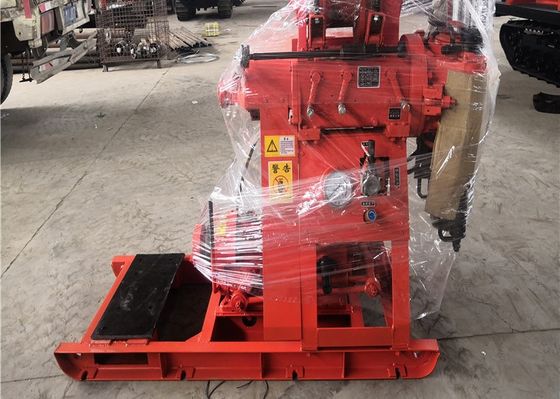

XY-1A core drilling machine is a light type core drill rig at high speed with hydraulic feeding.

1.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal Kelly, which can be replaced without shutdown, high efficiency, safe and reliable.
3.A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.


Technical parameters



Content Parameter Content Parameter
Drill Hoist
Drilling depth 100, 150m Max. Lifting Capacity (single rope) 15KN
Initial hole dia. 150mm Lifting Rotating Speed 36, 76, 121r/min
Final hole dia. 75, 46mm Hoisting Drum Linear Velocity (2 Levels) 10, 20, 44, 88m/min
Drill rod dia. 42, 43mm Drum Dia. 140mm
Angle range 90º~75º Wire Rope Dia. 9.3mm
Dimensions (L×W×H) 1620×970×1560(mm) Wire Rope Capability 35m
Weight (Without Power Unit) 620kg Brake Dia. 252mm
Stroke 350mm Brake Belt Width 50mm
Swivel Head Oil Pump
Spindle Speed(5-Speed) 140, 295, 470, 790, 1010 (r/min) Model YBC-12/125
Spindle Stroke 450mm Rated Presure 12.5MPa
Spindle Pull-down max. 15KN Displacement 8ml/r
Spindle Lifting Capacity max. 25KN Rated Speed 800~2500r/min
Upward Displacement Speed of Idling Vertical Spindle 3m/min Power (Diesel Engine or Motor)
Downward Displacement Speed of Idling Vertical Spindle 4m/min Model (Diesel Engine) ZS1105
  Rated Power 12.1KW
    Rated Speed 2200r/min
    Model (Motor) Y160M-4
    Rated Power 11KW
    Rated Speed 1460r/min



What are the characteristics of trailer mounted well drilling rig?



1. The trailer well drilling rig can be towed and moved by tractors and other tractors, so it is convenient and fast to move and has good mobility;

2. The main components of the drilling rig, such as winch, rotary table, gearbox, tower and chassis, are independently produced by our factory, with stable and reliable performance;

3. When drilling, the water well drilling rig uses an independent diesel engine as the power to make the mechanical winch and rotary table work at the same time through mechanical transmission;

4. It has the advantages of simple operation, strong usability, convenient maintenance, less investment and quick effect. It is the best product for users.

5. It is equipped with four hydraulic jacks, which is safe and reliable and improves the universality.

The water well drilling rig is mainly used for agricultural irrigation, ventilation holes of underground tunnels, drilling of engineering buildings, and exploration and general survey of hydro-geological conditions of strata



Professional Water Well Drilling Rig Machine Diesel Engine Power 0Professional Water Well Drilling Rig Machine Diesel Engine Power 1Professional Water Well Drilling Rig Machine Diesel Engine Power 2Professional Water Well Drilling Rig Machine Diesel Engine Power 3
