BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump, pressure washer pump

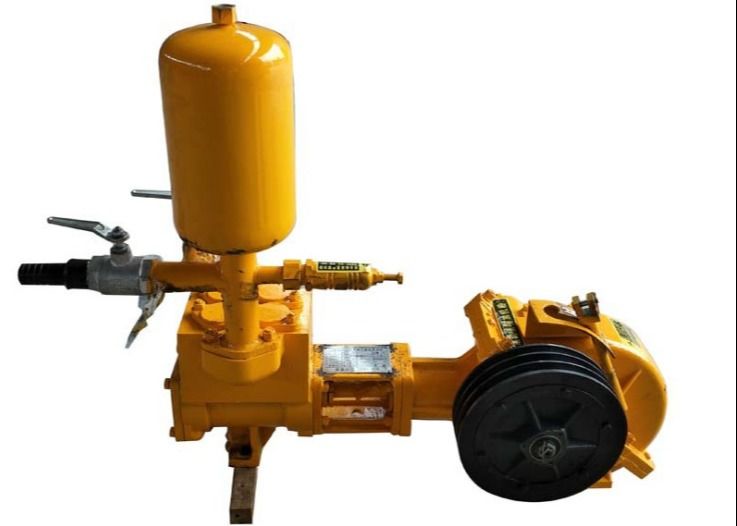

BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure. It is mainly used to provide flushing solution in blasting hole in geophysical prospecting. It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig. The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration.
Parameter of BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump
| Pump Type |
Horizontal |
| Type of action |
Double Acting |
| cylinders |
1 |
| Cylinder diameter (mm) |
95 |
| Stroke (mm) |
85 |
| Number of reciprocations (times / minute) |
165 |
| Displacement (liters / min) |
160 |
| Working pressure (MPa) |
1.6 |
| Transmission shaft speed (r / min) |
951 |
| V - belt pulley diameter (mm) |
270 |
| V-belt pulley type and slot number |
B-type × 3 slot |
| Transmission power (kW) |
7.5 |
| Diameter of suction pipe (mm) |
ø45 |
| Drain pipe diameter (mm) |
ø38 |
| Overall dimensions (L* W* H) (mm) |
1110* 800*950 |
| Weight (not including power machine) (kg) |
136 |
| Motor Y132M-4 Power |
7.5KW |
| Speed |
1440r / min |
| Diesel Engine R180 Power |
5.67KW |
| Diesel Engine Speed |
2600r / min |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
