OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

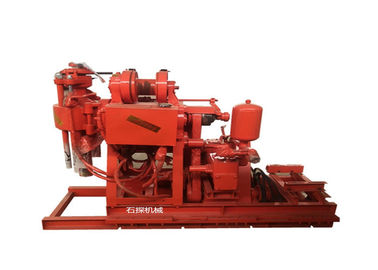

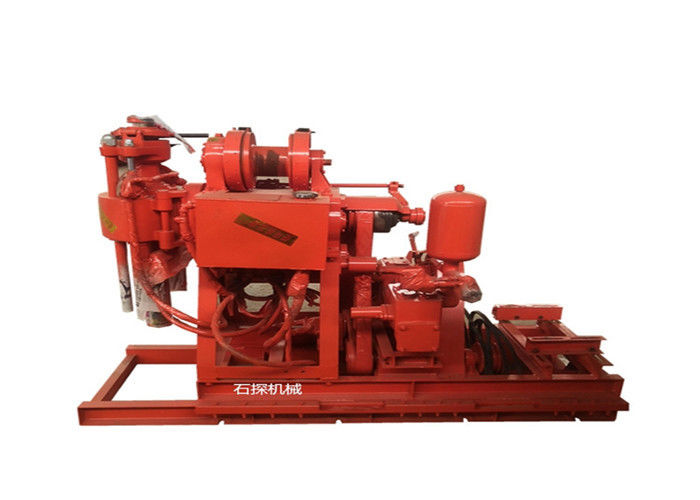

OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee

OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee
OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee

Large Image :  OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD
Packaging Details: Plastic film and Standard export wooden box
Delivery Time: 7 days after payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000sets/year
Detailed Product Description
Drill Depth: 200M Type: Rotary Drilling Rig,Core Drilling Rig
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power Type: Diesel
Product Name: Water Well Drilling Rig,Geotechnical Drilling Rig Application: Water Well Drilling Rig Mobile Drilling Rig,Hole Hammer Drill Rig
Drilling Diameter: 75-300mm Drill Rod Diameter: 42.50mm
High Light:

water borehole drilling equipment

,

hydraulic water well drilling machine

OEM Hydraulic Drilling Rig / Borehole Drilling Machine With 6 Months Warantee



Core Drill Rig Machine for Geological Exploration



The GK200 core drilling rig is a wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.



Parameter

Drilling Rig
Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
Mobile device
Moving length 350mm
Leave distance 300mm
Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172, 0.345, 0.738, 1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95 (77)
The maximum allowable pressure (Mpa) 1.2
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
Oil pump
Oil pump type YBC-20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1110
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460

Engineering Drilling Rig structure


1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.

1.1.2 Drilling bits can be chosen according to different strata .

1.2 Rig Features

1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

1.2.4 The handle centralized, easy to operate.

1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.


FAQ

Q1: Are you factory or trade company
A1: We are factory. And we have ourselves trading company.
Q2: How long is your air compressor machine warranty?
A2: One year for the whole machine and two years for screw air end, except consumable spare parts.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: What about the voltage of products? Can they be customized?
A4: Yes, of course. The voltage can be customized according to your requirement.
Q5: Which payment term can you accept?
A5: 30% T/T in advanced, 70% T/T against the B/L copy.
Q6: How long will you take to arrange production?
A6: 380V 50HZ we can delivery, the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.Q8.What about the maintenance?
A8: First maintenance need to be done after 500 Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q9: Can you accept OEM orders?
A9: Yes, with professional design team, OEM orders are highly welcome.
Q10: Which trade term can you accept?
A10: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
