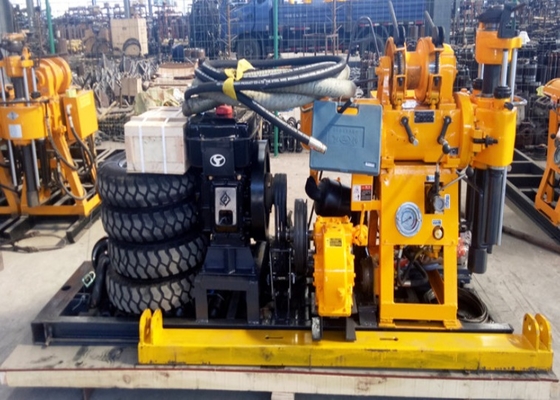

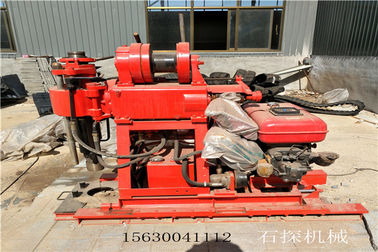

Durable Use Geological Drilling Rig Machine Rock Core Water Well Drilling Rig
Geological Drilling Rig Machine Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Geological Drilling Rig Machine specifications
| Drilling Rig |
| Drilling diameter(mm) |
75-300mm |
| Drilling depth (m) |
200 |
| Drill pipe diameter (mm) |
42.50 |
| Drilling angle(°) |
90-75 |
| Equipment size(L * B * H) |
1640 * 1030 * 1440 (mm) |
| Rig weight (except engine) |
500 |
| Gyrator |
| Spindle speed (four gear) (r/min) |
142,285,570 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
0.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
10 |
| Reel speed (r/min) |
55,110,220 |
| Reel circumferential speed(m/s) |
0.42,0.84,1.68 |
| Reel diameter(mm) |
145 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
27 |
| Brake diameter(mm) |
230 |
| Brake band width (mm) |
50 |
| Water pump |
| Pump type |
Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) |
95 (77) |
| The maximum allowable pressure (Mpa) |
1.2 |
| Work pressure (Mpa) |
0.7 |
| Cylinder diameter (mm) |
80 |
| Piston stroke(mm) |
100 |
| Oil pump |
| Oil pump type |
YBC -20/125 |
| Nominal pressure (Mpa) |
12.5 |
| Rated flow(ml/r) |
20 |
| Rated speed(r/min) |
800-2500 |
| Diesel engine or motor |
| Diesel engine |
ZS 1115 |
| Rated power (KW) |
16.2 |
| Rated speed (r/min) |
2200 |
| Rated pressure(Mpa) |
12.5 |
| Motor type |
Y160 - 4 |
| Rated power (KW) |
11 |
| Rated speed (r/min) |
1460 |
Geological Drilling Rig Machine Product Description:
1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.This machine adopts national patent technology taper clutch,with charactristics of strong transmission torque,easy to operation,free to maintenance.
4.53x59 driving lever is adopted, high rigitidy, strong delivery torque.
Geological Drilling Rig Machine advantage
With hydraulic automatic feeding device, elevated drilling efficiency.
Large torque and drilling diameter.
With a spherical jaw holding mechanism and the rod replacement without breakdown, high efficiency.
Compact structure, small volume, lightweight, high detachability, easy
transportation and suitable for the operations in plains or mountain areas.
Adopting large drive pipe, double guide rod, increase the stability of the.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
