Rotary Hydraulic 200m Mining Drilling Equipment Portable Soil Test

Large Image : Rotary Hydraulic 200m Mining Drilling Equipment Portable Soil Test

Product Details:

Place of Origin:	China
Brand Name:	Shitan
Certification:	ISO9001
Model Number:	XY-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Soil Testing Drilling Rig Machine	Drilling Way:	Rotary
Geological:	Soil, Rock, Hard Rock,	Transport Package:	In Wooden Case
Chuck:	Hydraulic Chuck	Usage:	Soil Sample
Net Weight:	600 KG	Warranty:	1 Year
Highlight:	soil sample testing equipment , soil testing drilling rig

Rotary Hydraulic 200m Mining Drilling Equipment Portable Soil Test

Product Specifications

Product name	Soil Testing Drilling Rig Machine
Drilling Way	Rotary
Geological	soil, rock, hard rock
Transport Package	in Wooden Case
Chuck	Hydraulic Chuck
Usage	Soil sample
Net weight	600 KG
Warranty	1 Year

Product Description

The Rotary Hydraulic 200m Mining Drilling Equipment is a portable soil test drilling machine designed for shallow to medium depth hole spindle type core drilling. This versatile rig is capable of diamond drilling and meets various drilling technology requirements, powered by either electric motor or diesel engine.

Technical Parameters

Drilling depth	200m
Open hole diameter	75-300mm
End hole diameter	75mm
Active drill rod	53/59*4200mm
Rod diameter	50,60mm
Drill angle	90°-75°
Matched power (diesel power)	15kw/2200r/min
Dimension	28009501700mm

Key Features

53*59 drilling rod provides high rigidity and strong delivery torque
Taper clutch with national patent technology offers strong transmission torque and easy operation
Winch with large module planetary gear and supporting frame enhances hoisting and braking ability
Vertical spindle fixed by four groups of bearings ensures rigidity for complex geological conditions
Equipped with mud pump (160L/min flow) for cost efficiency and compact design

Operational Advantages

Wheeled walking mechanism with hydraulic cylinder pillar for easy mobility and leveling
Hydraulic feed mechanism improves drilling efficiency
Ball-type clamping mechanism enables non-stop inverted bar operation
Bottom hole pressure gauge for precise hole situation monitoring
Hydraulic tower operation for convenience and reliability
Diesel engine with electric start reduces worker labor intensity

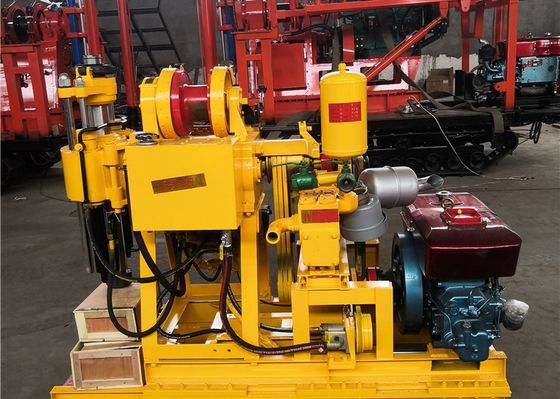

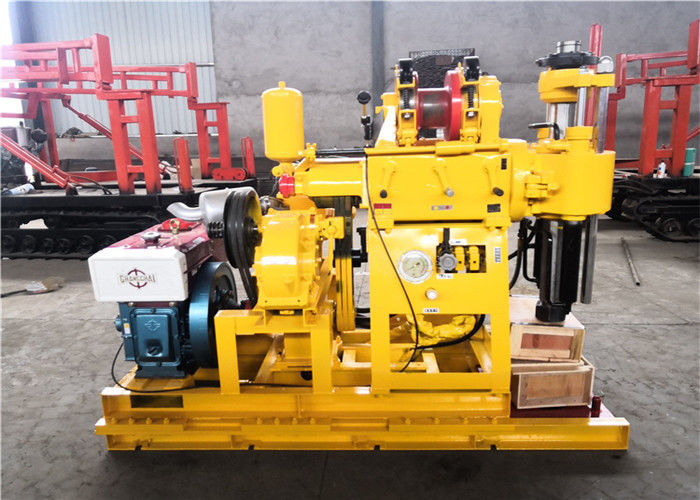

Product Images
