XY-1A 150 Meters Detph 20 HP Diesel Engine Portable Water Well Drilling Rig

XY-1A 150 Meters Detph 20 HP Diesel Engine Portable Water Well Drilling Rig Equipment

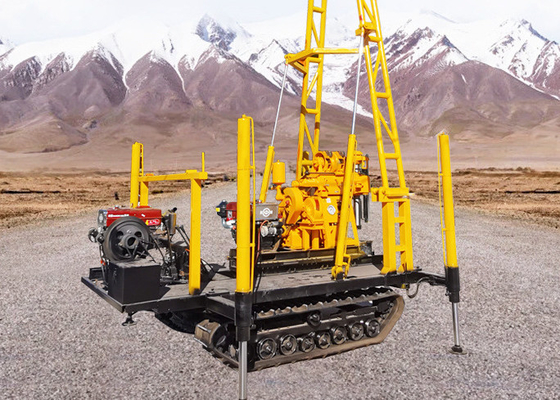

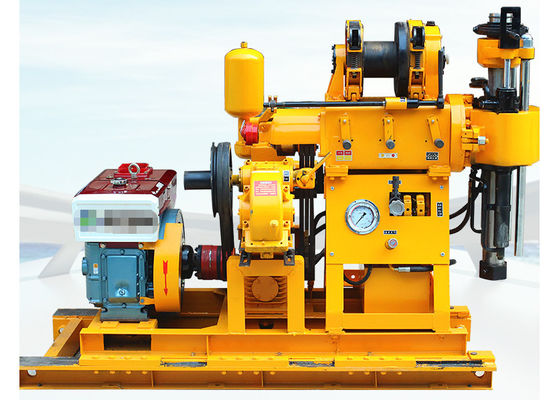

XY-1A Water Well Drilling Rig Product Description

Models range from lightweight drill rigs for core drilling to heavy-duty, multipurpose drill rigs with the ability to perform core drilling. The operator is better protected from hydraulic components, yet without compromising productivity and efficiency.The open, simple design of our exploration drill rigs has been proven time and again in the toughest working environments. The XY-1A type drilling rig can reach a depth of 150m, which is convinent for family end use, either for water well drilling or irrigation purpose.

XY-1A Water Well Drilling Rig Product Tech Data

XY-1A Water Well Drilling Rig  Main Features

1. Adopting CG140 model auto transmission, has 10 rotation speeds and reasonable speed range, with eight forward rotation gears and two reverse rotation gears, high speed, strong stroke .

2. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
3. The operation handles fixed in reasonable layout to make it more convenient for workers to operate the machine.

4. Equipped with normally closed hydraulic chuck, operation flexible and reliable.
5. Spindle and hoist can be operated separately.
6. Spindle has big inner diameter, able to use big hexagonal drilling rod.
