Rotary Crawler Hydraulic Rock Drilling MachineSoil Test Spt Use

Rotary Crawler Hydraulic Rock Drilling MachineSoil Test Spt Use
Rotary Crawler Hydraulic Rock Drilling MachineSoil Test Spt Use
video play

Large Image :  Rotary Crawler Hydraulic Rock Drilling MachineSoil Test Spt Use

Product Details:
Place of Origin: China
Brand Name: Shitan
Certification: ISO9001
Model Number: 30-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plastic film and Standard export wooden box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Soil Testing Drilling Rig Machine Geological: Soil, Rock, Hard Rock,
Drilling Depth: 30-800 Type: Portable Type
Usage: Soil Sample Warranty: 1 Year
Highlight:

hydraulic crawler drilling machine

,

track mounted drilling machine

Rotary Crawler Hydraulic Rock Drilling Machine Soil Test SPT Use
Product Specifications
Attribute Value
Product name Soil Testing Drilling Rig Machine
Geological soil, rock, hard rock
Drilling depth 30-800
Type portable type
Usage Soil sample
Warranty 1 Year
Product Description

Rotary Hydraulic Crawler Deep Rock Drilling Rigs Soil Test SPT Use features an innovative crawler chassis design that enhances bearing capacity of gear, box body and shaft, delivering nearly double the maximum power output compared to original products.

  • Single axle steering brake replaces double axle gear brake, significantly reducing wear on components
  • Wet friction brake system for enhanced reliability
  • Hydraulic transmission tower lifting device for safe, convenient operation and mobility
  • Customizable to meet specific customer requirements
Key Advantages
  • Four independently controlled hydraulic support legs ensure stable platform positioning
  • 4500kg maximum load capacity with capacity for XY-2 drilling rig
  • Optimized platform dimensions for efficient operation
  • Rubber track chassis offers reduced weight, lower lifecycle costs, quieter operation, less vibration, and improved fuel efficiency
  • Pavement-friendly design for urban road use

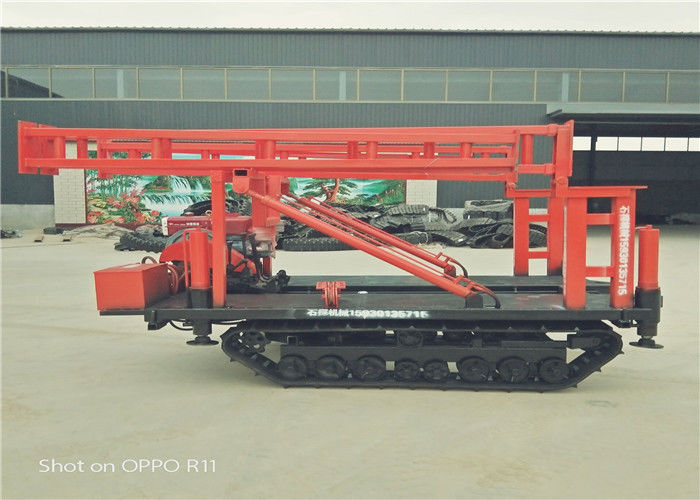

Note: This price includes hydraulic tower and diesel engine, but does not include the drilling rig. The drilling machine shown in images is for display purposes only.
LD-2 Crawler Chassis Specifications
Item Figure
Theoretical velocity 10km/h
KN 10KN
Load 4500KG
Upgrade 20º
Minus grade 20º
Roll angle 20º
Ground clearance 200mm
Track width 300mm
Track gauge 1600mm
Clawler bearing length 1350mm
Ground pressure ≤30Kpa
Rotary Crawler Hydraulic Rock Drilling MachineSoil Test Spt Use 0
