Product Details:
Payment & Shipping Terms:
|
| Product Name: | Soil Testing Drilling Rig Machine | Weight: | 600 KG |
|---|---|---|---|
| Geological: | Soil, Rock, Hard Rock | Drilling Depth: | 50-100 Meter |
| Type: | Portable Type | Application: | Different Field Drilling |
| High Light: | soil sample testing equipment,soil testing drilling rig |
||

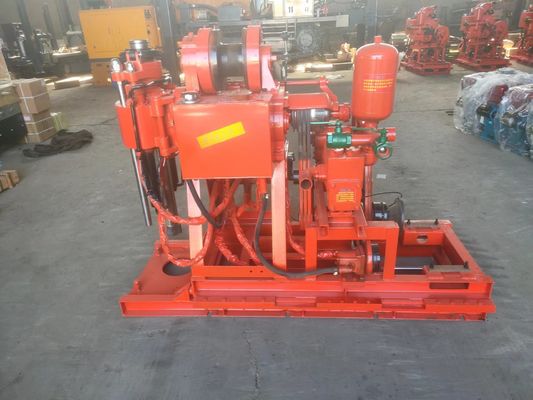

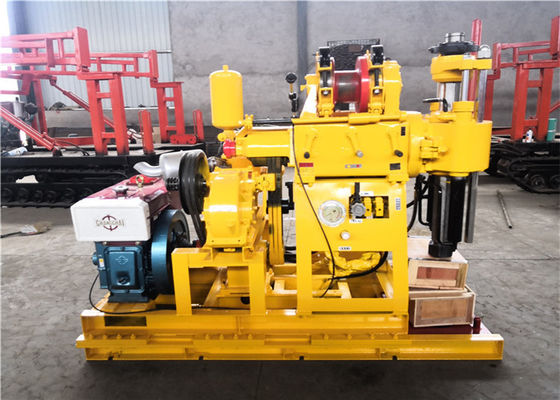

Drill Rig introduces:
The core drill is mainly used for diamond and cemented carbide exploration and drilling of solid deposits. It can also be used for engineering geology and underwater exploration, shallow oil and gas exploitation, as well as ventilation and drainage of mine tunnels. It has the advantages of simple and compact structure, reasonable layout, light weight, convenient disassembly, reasonable speed range, diamond and cemented carbide drilling for solid deposits on the surface and tunnel. Drill bits such as alloy, steel sand and steel particles can be selected according to different bottom layers.
Drill Rig Specification:
| Drilling Depth: | 200m,150m,100m,70m,50m,30m |
| The Hole Diameter | 75mm,91mm,110mm,130mm,150mm |
| Kelly | 52*59*4200mm |
| Drill Pipe Diameter | 42mm,50mm,60mm |
| Drilling Angle | 90°-75° |
| Rig Dimensions(Length*Width*Height) | 1433mm*697mm*1273mm |
| Weight (excluding power) | 525kg |
| Rig Mocing Device(optional) | |
| Shift Travel | 350mm |
| The Diatance From The Port | 300mm |
| Gyrator | |
| The Vertical Speed (fore steps) | 71,142,310,620 r/min |
| The Vertical Stroke | 450mm |
| The Maximum Speed Of Vertical Load | 0.05m/s |
| The Vertical Load Down The Maximum Moving Speed | 0.067m/s |
| Max Feeding Force | 15KN |
| Max Lifting | 25KN |
| The Vertical Maximum Moving Speed | 1.25 KN.M |
| Windlass | |
| The Maximun Lifting Capacity | 15KN |
| Drum Circumference Speed | 0.166, 0.331 ,0.733, 1.465m/s |
| Drum Speed | 19, 38, 84, 168r/min |
| Drum Diameter | 140mm |
| The Diameter Of Wire Rope | 9.3mm |
| Wire Rope Capacity | 40m |
| Oil Pump | |
| Type | YBC-12/125 |
| Rated Pressure | 12.5Mpa |
| Nominal Flow | 12ml/r |
| The Rated Speed | 2000 r/min |
| Pump | |
| Types | Horizontal Single Cylinder Double Acting |
| The Maximun Displacement(motor) | 95(77)L/min |
| The Maximum Working Pressure | 1.2Mpa |
| The Rated Working Pressure | 0.7Mpa |
| Cylinder Diameter | 80mm |
| The Piston Stroke | 100mm |
| The Power Machine | |
| Diesel Engine Modle | ZS1115 |
| Rated Power | 16.2KW |
| The Rated Speed | 2200r/min |
| Motor Type | Y-160-4 |
| Rated Power | 11KW |
| Rated Speed | 1460r/min |
Product advantages
1, XY-1B is a low speed large torque portable hydraulic feed drilling machine
2, drilling rig used in the railway, electricity, transportation, bridges, buildings, engineering geology of dam Foundation of exploration
3, geological core drilling and exploration
4, small Grouting Confucius, blast hole drilling
5, small water well drilling
6, the rig has a hydraulic feeding mechanism and improve drilling efficiency, reduce labor intensity
7, the rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown lever is efficient and easy to operate, safe and reliable.
8, equipped with hole-bottom pressure gauge indicates pressure, easy to handle holes
9, handles centralized, convenient operation
10, rig compact structure, small volume, light weight, high degree of decomposition, easy to move, suitable for working in Plains or mountain areas.
