Bore Hole Rock Core Small Water For Different Field Drilling Well Drilling Machin
1.The Drill Rig Information:

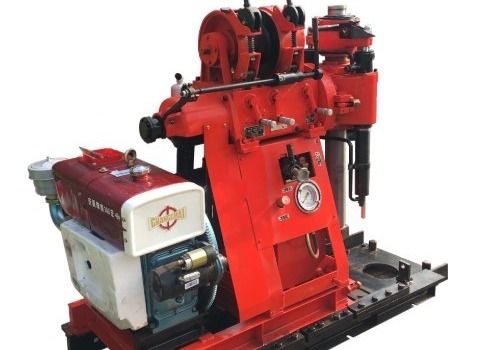

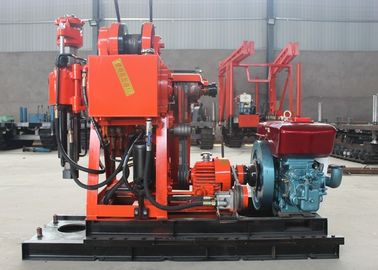

XY-1 Hydraulic portable drilling machine is a hydraulic feed portable core drilling machine. The drilling machine is suitable for geological drilling buildings such as mountains and hills, river tunnels and other complex terrains. Engineering geological prospecting for petroleum geophysical prospecting drilling holes, blasting Po holes and other drilling to meet the needs of different users, the drilling machine can choose diesel engine Any of the three powers of a gasoline engine or electric motor, diesel by default
2. Parameter specifications
| Drilling Depth: |
100m,70m,50m,30m |
| The Hole Diameter |
75mm,91mm,110mm |
| Kelly |
52*59*4200mm |
| Drill Pipe Diameter |
42mm |
| Drilling Angle |
90°-75° |
| Rig Dimensions(Length*Width*Height) |
1640mm*1030mm*1440mm |
| Weight (excluding power) |
500kg |
| Swivel Head |
| Spindle speed(3-speed) |
142/285/570 r/min |
| Spindle stroke |
450 |
|
upward displacement speed
of idling vertical spindle
|
0.05m/s |
|
Downward displacement speed
of idling vertical spindle
|
0.067m/s |
| Spindle pull-down max |
15KN |
| Spindle lifting capacity max |
25KN |
| Gyrator |
| The Vertical Speed (fore steps) |
71,142,310,620 r/min |
| The Vertical Stroke |
450mm |
| The Maximum Speed Of Vertical Load |
0.05m/s |
| The Vertical Load Down The Maximum Moving Speed |
0.067m/s |
| Max Feeding Force |
15KN |
| Max Lifting |
25KN |
| The Vertical Maximum Moving Speed |
1.25 KN.M |
| Hoist |
| Max.lifting capacity(1-speed,single rope) |
10KN |
| Cable volume (number) of hoisting drum |
27m |
| Wire rope dia. |
9.3mm |
| Mud Pump |
| Types |
Horizontal reciprocating single-acting piston pump |
| Displacement max |
95 L/min |
| Equipped with motor |
77 L/min |
| Allowable working pressure max |
1. 2Mpa |
| Continuous working pressure |
0.7Mpa |
| Suction pipe dia |
32mm |
| Discharge pipe dia |
25mm |
What is the Drill Rig detail?
First, use:
1. Used for census exploration, geophysical exploration, road and building exploration and blasting drilling and other drilling projects;
2. According to the different strata of the choice of alloy, steel grit and steel bit drilling;
3. Can drill 2-9 grade sandy clay and bedrock layer.
Second, the main features:
1. With automatic feeding into the body, high drilling efficiency.
2. The use of the ball card clamping mechanism instead of chuck, can be implemented without down the bar.
3. Handle centralized, easy to operate, safe and reliable.
4. Compact structure, rig, pumps and diesel engines are installed in the same chassis, the occupation of small venues.
5. Light weight, strong decomposition, easy to move, suitable for plain and mountain work.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
