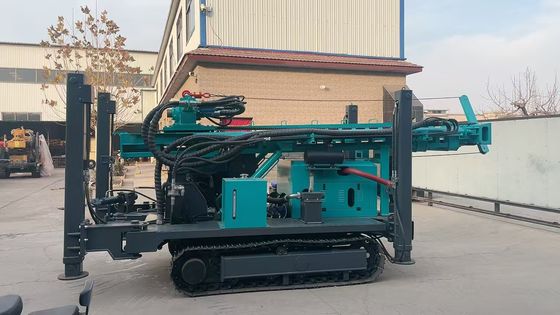

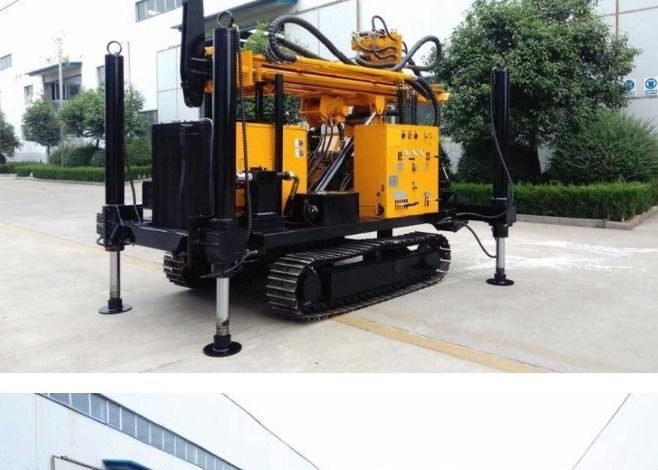

200m Depth Crawler Drilling Equipment With Air Compressor
Product Attributes
| Attribute |
Value |
| Product name |
Soil Testing Drilling Rig Machine |
| Geological |
soil, rock, hard rock |
| Drilling depth |
30-800m |
| Type |
portable type |
| Usage |
Soil sample |
| Warranty |
1 Year |
Product Description
This efficient and versatile drilling equipment is designed for drilling wells, agricultural irrigation wells, ground source heat pump wells, and other wellbores. It is particularly suitable for water intake projects in mountainous areas and rock formations.
Key Features
- New hydraulic technology with large torque hydraulic motor rotation and propulsion from large-diameter hydraulic cylinder
- Powerful hydraulic system with two-stage air filter to prolong diesel engine service life
- Unique pump design for easy maintenance and reduced costs
- Centralized hydraulic console for simplified operation
- Excavator crawler chassis for superior off-road performance
- Two-stage rotation and propulsion speed for different soil and rock formations
- Combined locator system for precise positioning with various drill pipes and impactors
- Hoisting mechanism for easy drill pipe and impactor handling
Technical Specifications
| Drilling depth |
200m |
| Hole (Drill bit) diameter (mm) |
Φ115-350 |
| Adaptable formations |
Loose soil and bedrock (Hardness f=6~20) |
| Drilling method |
Top drive rotation, hydraulic feeding, works with mud pump or DTH hammer |
| Rotary speed (rpm) |
60-160 |
| Torque (N.m) |
5000-6500 |
| Feeding force (Ton) |
8 |
| Lifting force (Ton) |
16 |
| Tool winch lifting force (Ton) |
1.5 |
| Drill pipe dia. |
Φ76/Φ89 |
| Drill pipe length |
3000mm |
| Air pressure (Mpa) |
1.05-2.46 |
| Air consumption (m³/min) |
16-35 |
| Diesel engine |
YN33GBZ |
| Engine parameter |
65kW/2400rpm |
| Walking speed |
0-2.5km/h |
| Climbing capacity |
20° |
| Distance from ground |
250mm |
| Dimension (mm) |
4000×1900×2600 |
| Unity weight (kg) |
6000 |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
