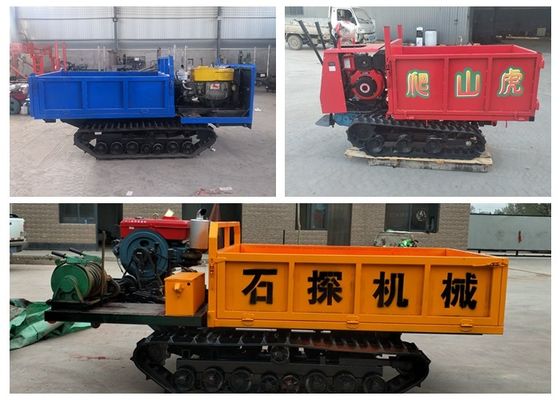

Mini Garden Crawler Equipped Track Transporter Available for Family Usage
Product Description:
ST crawler mini dumper adopts the most advanced technology and design to solve the problems for mountainous rural area and farm for transportation of agriculture products such as rice, bamboo, wood , fruit, oil palm, durian, pineapple and farm use materials such as fertilizer, tools,soil,sand and also helpful in construction site and short distance transport. It is widely used in China south and west hilly rural area and has been proved it reliability and adaptability . It is labor saving with lower cost and strong power for farmers' work which dump truck can not accomplish and bring users with real economic benefits.
This crawler mini dumper is easy to operate, has complete gear positions, and has a small load-bearing grounding pressure. this crawler mini dumper be qualified in deeper mud pits and pools and complex stone pavements. In addition, the mini dumper has a small size than the ordinary transporter that can crossing of the polar region and can easily pass through narrow rocks.
Product Parameter:
| Model | ST-2 |
| Weight | 1.39ton |
| Max. Capacity | 2ton |
| Gear position and speed | Range shift +3 forward gear+1 reverse gear ;fast 8km,low 0.6km |
| Bucket size | 1.6*2.0m(customizable) |
| Climbing ability | 28degree |
| Engine power | 28HP |
| over-obstacle capacity | 30cm |
| Overall length* Width*Height | 340cm*160cm*120cm |
| Chassis length*Width*Height | 195cm*160cm*45cm |
| Diesel engine model | WL-28 |
| Diesel engine power | 20.24kw/2200r/min |
| Vehicle bottom low spot from ground clearance | 25cm |
| Bucket size | 200cm*160cm*40cm(customizable) |
| Flat road capacity | 2000kg |
| Steep road capacity | 1200kg |
| Traveling speed | 1.2-6km/h |
| Over-obstacle capacity | 20 degree slop, vertical height 20cm obstacle |
| Fording depth | 40cm |
| Traveling in mud depth | 20cm |
| Crawler grounding length | 130cm |
| Crawler type | 400mm |
