Small Borehole Rock Core Deepfoundation Drill Rigs For Mining

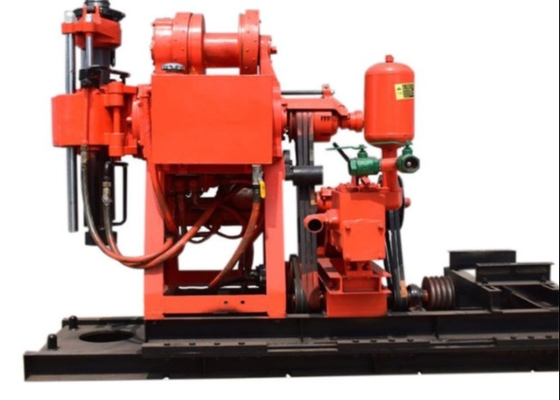

Large Image : Small Borehole Rock Core Deepfoundation Drill Rigs For Mining

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Portable Core Drilling Machine	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	30-180m	Dimension(LWH):	18008351150mm
Drill Pipe Diameter:	42mm
Highlight:	rock core drilling machine , geological drilling machine

Small Borehole Rock Core Deepfoundation Drill Rigs for Mining

Product Specifications

Attribute	Value
Type	Portable core drilling machine
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling depth	30-180m
Dimension (LWH)	18008351150mm
Drill pipe diameter	42mm

XY-1 Drill Rig Introduction

The XY-1 portable core drilling machine is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole drilling, and irrigation projects.

Technical Specifications

Drilling Depth	100m, 70m, 50m, 30m
The Hole Diameter	75mm, 91mm, 110mm
Kelly	52594200mm
Drill Pipe Diameter	42mm
Drilling Angle	90°-75°
Rig Dimensions (LWH)	1640mm1030mm1440mm
Weight (excluding power)	500kg

Swivel Head Specifications

Spindle speed (3-speed)	142/285/570 r/min
Spindle stroke	450
Upward displacement speed of idling vertical spindle	0.05m/s
Downward displacement speed of idling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN

Key Features

Used for census exploration, geophysical exploration, road and building exploration and blasting drilling projects
Can drill 2-9 grade sandy clay and bedrock layer
Automatic feeding system for high drilling efficiency
Ball card clamping mechanism allows operation without down the bar
Centralized controls for easy operation and safety
Compact structure with rig, pumps and diesel engine on same chassis
Lightweight and easily transportable for various terrains

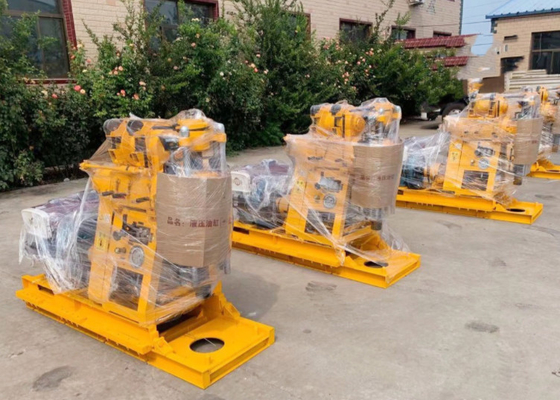

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
