Product Details:
Payment & Shipping Terms:
|
| Product Name: | Soil Testing Drilling Rig Machine | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well,water Well.core Sample | Voltage: | 380V,24 V |
| Power(w): | 22P | Drilling Depth: | 300m |
| Drilling Diameter: | 75-300mm | Drilling Angle: | 0-360 |
| Product Name: | Hydraulic Drill Machine,diamond Core Sample Drilling Rig Geotechnical Drilling Rigs For Sale | Spindle Speed: | 570 R/min |
| High Light: | rock core drilling machine,geological drilling machine |
||

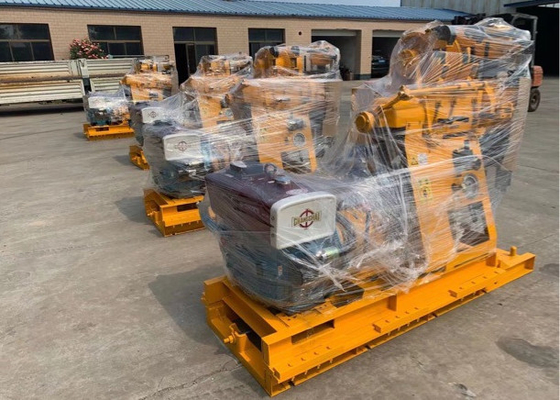

Geological Drilling Rig Machine brief introduction
Core Drilling Rig is mainly adapted to suit for engineering exploration, water well and foundation hole drilling, it can also can be used in mineral exploration with diamond bit or tungsten-carbide tipped bit. which is very suitable for Africa soil conditions with softy sandy and less rocky areas, OUR DRILLING RIGS exported HZ core water well drilling rig more than 3500 sets per year.
Geological Drilling Rig Machine parameters
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
| Oil pump | |
| Oil pump type | YBC -20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | 1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
Advantages of drilling rig:
1. Boreholes for agricultural irrigations and geothermal wells
2. Water supply for your house yard, gardens and farms;
3. Unique design and simple drilling structure;
4. Easy to transport and can learn how to handle the machine in short time;
5. Assure easily operation and long life span to save more labors and money for you;
