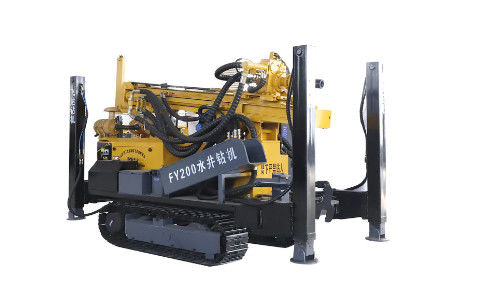

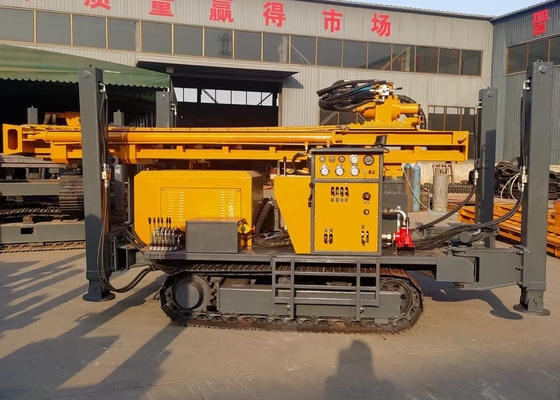

Powerful Deep 200m Water Well Drilling Rig Machine With Compressor
Description Of Water Well Drilling Rig
SHITAN multi-purpose deep water well drilling rig is our independent research and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Technical Parameters Of Water Well Drilling Rig
| Model |
ST-200 |
| working wind pressure(Mpa) |
17-31 |
| Weight |
10~20 |
| Hole diameter(mm) |
4500kg |
| Cost effective drilling depth(m) |
180m |
| Feeding stroke(mm) |
3000 |
| Length of drill pipe(mm) |
3m |
| Diameter of drill pipe(mm) |
Φ76 |
| Maximum hoist capacity(N) |
35000 |
| Climb ability(°) |
30 |
| Walking speed(km/h) |
1~3 |
| Rotating speed(r/min) |
0-96 |
| Rotating torque(N.m) |
2100 |
Feature:
1. Using crawler chassis, leg cylinder stroke 1.5m can be automatically loaded, relocation and transportation convenience.
2. With hydraulic feed mechanism to improve drilling efficiency.
3.With a pressure gauge indicating the bottom of the hole, easy to grasp the situation inside the hole.
4. With a normally closed hydraulic chuck, easy and flexible operation.
5. Vertical shaft and hoist can achieve independent operation.
6. Vertical shaft through-hole diameter, can be replaced with large six active drill pipe.
Application Of Water Well Drilling Rig
SHITAN200 water well rig is a light, efficient and versatile drilling and drilling equipment powered by a diesel engine. It is mainly used for drilling wells, agricultural irrigation wells and other wells, especially for mountainous and rock formations. Water intake project. This series of rigs adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
