Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Type: | Rotary Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Water Well |
| Voltage: | 380V | Power(W): | 15KW |
| Drilling Depth: | 200M | Drilling Diameter: | 35-350mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Water Well Drilling Rig |
| High Light: | 200m water well drilling rig,200M portable water drilling rig,15KW water well drilling rig |
||

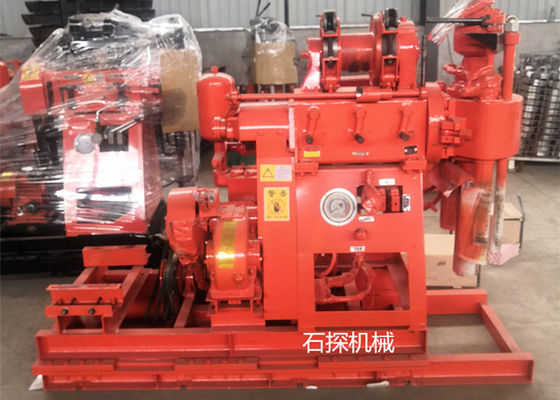

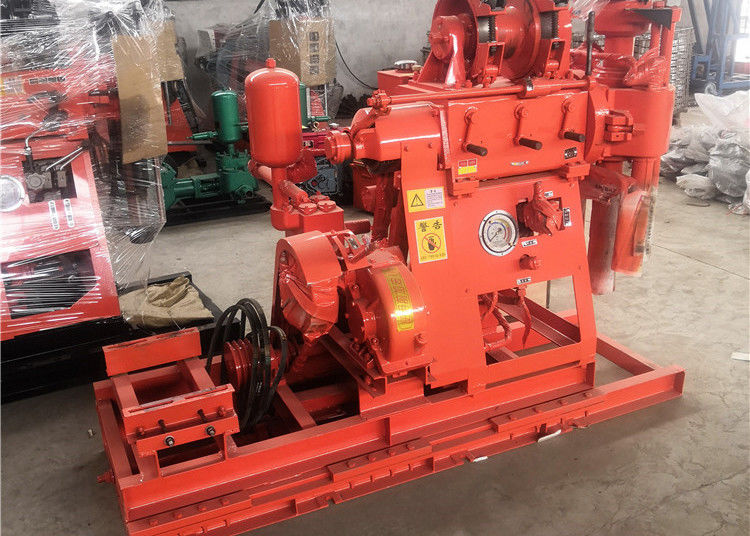

Cheap Price Hydraulic Portable 200m Water Well Drilling Rig Machine For Sale
Brief introduction of drilling rig:
Maily used to water well drilling, soil investigating, geological exploration, geotechnical survey, soil sample taking, SPT Test, geothermal well,etc.
Geological Drilling Rig Machine parameters
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
| Oil pump | |
| Oil pump type | YBC -20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | 1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
Features of drilling rig:
1. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .
2. To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.
3. To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.
4. To be equipped with speed reducer and sludge pump,being integrated structure.
5. The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.
6. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
7. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Advantages of drilling rig:
1. Boreholes for agricultural irrigations and geothermal wells
2. Water supply for your house yard, gardens and farms;
3. Unique design and simple drilling structure;
4. Easy to transport and can learn how to handle the machine in short time;
5. Assure easily operation and long life span to save more labors and money for you;
Our services
1. This drilling rig is a high-speed drilling rig suitable for ordinary exploration, geophysical exploration, road and construction exploration, and drilling of blast holes.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.
