Portable Small Geological Drilling Equipment Manufacturers 50m

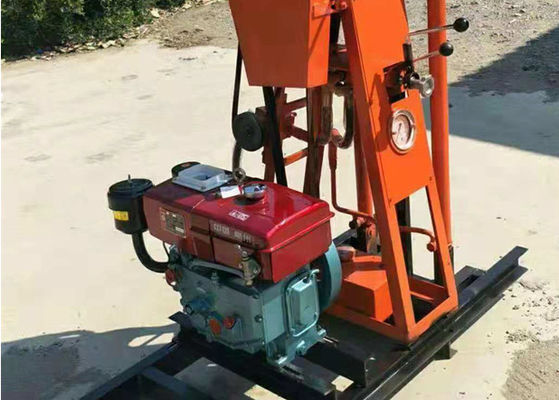

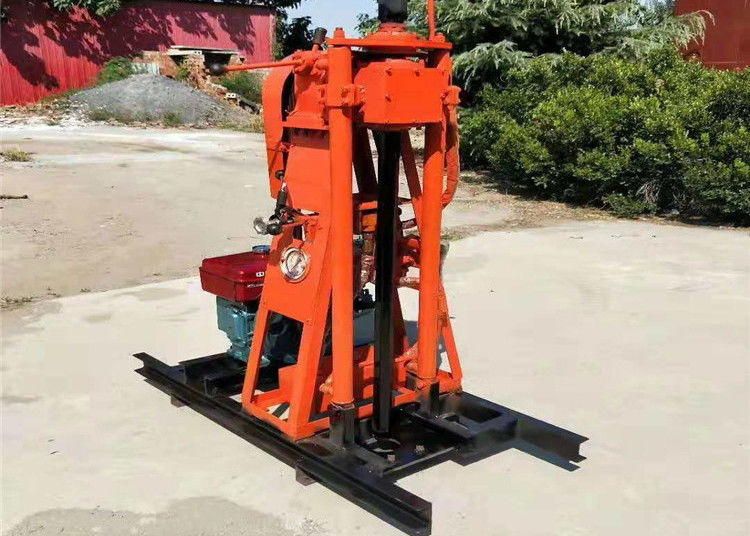

Large Image : Portable Small Geological Drilling Equipment Manufacturers 50m

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Portable Core Drilling Machine	Power Type:	Diesel
Weight::	480kg	Usage:	Water Well,railways, Core Drilling
Drilling Depth:	50m	Dimension(LWH):	1180×680×1600mm
Drill Pipe Diameter:	42mm	Condition:	New
Weight:	200KG	Hole Size Diameter:	73-108mm
Highlight:	50m exploration drilling rig , 50m geological drilling rig , 42mm Exploration Drilling Rig

Portable Small Geological Drilling Equipment - 50m Depth Capacity

Key Specifications

Attribute	Value
Type	Portable core drilling machine
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling depth	50m
Dimensions (L×W×H)	1180×680×1600mm
Drill pipe diameter	42mm
Condition	New
Hole size diameter	73-108mm

Product Overview

The WLD-50 portable hydraulic core drilling rig is a compact sampling drilling equipment designed for geological exploration in plains, mountainous regions, and hard-to-access areas. With its lightweight construction and portable design, it's ideal for railway, water conservancy, and construction projects requiring geological sampling and survey work.

Key Features

Compact structure with small footprint for easy transportation
Lightweight design (208kg including gasoline engine) for mobility
Versatile drilling capabilities (diamonds, composite sheets, alloys)
Oil pressure feeding system with variable speed control
Faster drilling speed with larger core sample diameter
Ideal for challenging terrains including mountains, hills, and rivers

Technical Parameters

Parameter	Specification
Type	ST50 drilling rig
Maximum drilling depth	50 meters
Hole size diameter	73-108mm
Drill pipe diameter	42mm
Vertical spindle speed	70-650 rpm
Reverse rotation speed	50-130 rpm
Power	5.7KW
Dimensions	1180×680×1600mm

Applications

This versatile drilling rig is suitable for:

Engineering geological investigation for railways, hydropower, and transportation projects
Bridge and dam foundation surveys
Geological core drilling and physical investigation
Small grouting hole and blasting hole drilling
Small water well drilling operations
