14.7KW 300m Depth 42mm Rod Core Drill Rig

14.7KW 300m Depth 42mm Rod Core Drill Rig
14.7KW 300m Depth 42mm Rod Core Drill Rig 14.7KW 300m Depth 42mm Rod Core Drill Rig

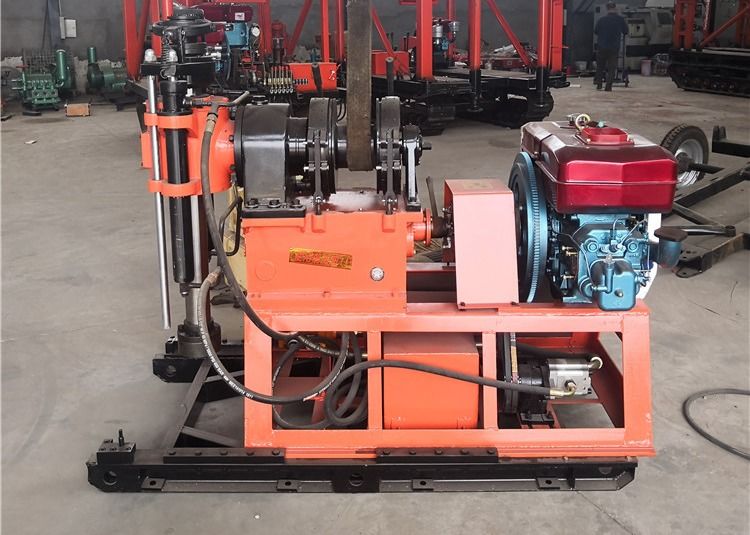

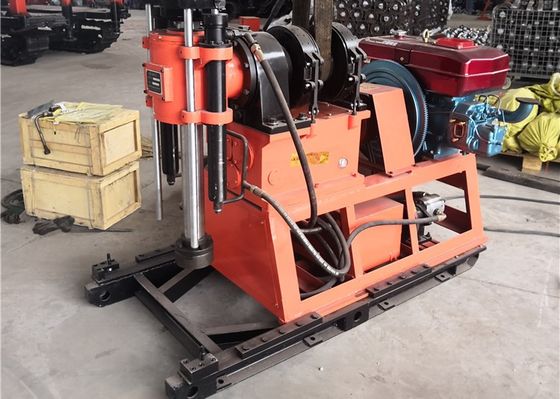

Large Image :  14.7KW 300m Depth 42mm Rod Core Drill Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GY-200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Portable Core Drilling Machine Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 73-300m Drill Pipe Diameter: 300
Condition: New Weight Without The Engine: 670kgs
Maximum Torque: 2000N*m Rope Diameter: 12.5min
High Light:

300m core drill rig

,

42mm rod core drill rig

,

14.7kw core drill rig

GY-200 300m Drilling Machine For Water Well Core Drilling And Engineering Drilling Rig


Product Description:


1. Large torque, multiple drilling speeds in an appropriate range

2. The rig has two reverse rotation speeds to facilitate drilling and handle drilling problems.

3. Be capable to slide on the frame of 400mm, giving enough space to handle drilling tolls over the hole

4. High efficiency drilling with hydraulic feeding structure

5. Stable and high strength drilling mast with only a few components, easy to assemble.

6. Multiple usages for geotechnical investigation, wire line core drilling (mineral exploration), hole boring for water well, small size piling hole.

7. It’s Capable to slide on the rig frame to give an empty space to handle the drilling tools it’s also has a mud pump attached on the rig

8. GY-200 has a hydraulic chuck to lock Kelly bar.



Function:



1. Core drill and sampling

2. Small well boring

3. Tower has been advanced to staircase drilling mast, easy to erect, climb, and use, small, more compact and light than previous four column mast.



Tools Applied:



1. General rods in 42mm dia

2. All sorts of barrels that used in conventional drilling:

T2, T6, NMLC, LTK, WF, WG, WM, WG & B single barrel, Chinese single barrel and NQ, HQ barrel(not wireline drilling).

3. SPT tools

4. Other tools that required in the tests and conform to relative international standard such as shelby tubes, bailers etc



Technical Figures:



Drilling Depth 60M 225M 295M
Drilling hole diameter 300mm 76mm 46mm
Drilling rod diameter 50mm 42mm
Spindle turnable angle 0-360°
Weight without the engine 670kgs
Dimension 1820x980x1400
Speed (r/min) Forward 900 475 388 205 157 68r/min
Reverse 256 85 r/min
Maximum Torque 2000N*m
Feeding travel 400mm
Maximum Cylinder feeding force 29KN
Maximum Cylinder lifting force 39KN
Lifter
Lifting capacity 30kn
Bobbin line speed,2nd layer 0.27 0.64 0.83 1.58 1.64m/s
Bobbin diameter 135mm
Rope diameter 12.5mm
Rope capacity 30m
Oil Pump
Type CBF-F420-ALP Gear oil pump
Displacement 20ml/r
Rated Speed 2500 r/min
Rated Pressure 20MPa
Maximum Pressure 25MPa
Power Diesel Engine Motor
Type ZS1110 Y160L-4
Rated power 14.7KW 15KW
Rated speed 2200r/min 1460r/min
Weight 180kgs 140kgs
Frame
Type Sliding type with base frame
Movable travel of drill 400mm
Distance between drill and hole-opening 270mm



Feature:



1. Small, light and compact in structure

2. 2 wheels trailer for easy relocation on site

3. easy to use tower, fast to install, safe and stable

4. high quality, long duration, long lasting performance
