Geological exploration small hydraulic crawler mounted drill rig

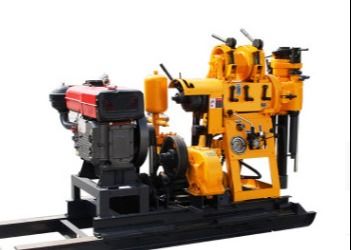

hydraulic crawler mounted drill rig Description:
XY-1 drilling rig is a portable and multi-purpose drilling rig for engineering investigation
It is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures. Diamond alloy and steel grain bits can be selected for drilling according to different strata.
hydraulic crawler mounted drill rig Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill
both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
hydraulic crawler mounted drill rig Technical Parameters:
| Basics |
Drill depth (m) |
150 |
| Drill hole(mm) |
75-300 |
| Final hole (mm) |
75 |
| Rod diameter (mm) |
42/50 |
| Drill angle (Degree) |
75-90 |
| Size(LxWxH)mm |
1710x8500x1340 |
| Weight (kg) |
500 |
| Spindle |
Spindle speed (r/min) |
1010/790/470/295/140 |
| Travel (mm) |
450 |
| Max. Pressure (kN) |
15 |
| Lifting force (kN) |
25 |
| Hoist |
Maxing lifting force (kN) |
15 |
| Drum speed (r/min) |
121/76/36 |
| Drum diameter (mm) |
140 |
| Steel rope diameter (mm) |
9.1-12 |
| Steel rope capacity |
35 |
| Brake diameter (mm) |
252 |
| Brake band width (mm) |
50 |
| Oil Pump |
Model |
YB-20/125 |
| Rated pressure (Mpa) |
12.5 |
| Flow rate (ml/r) |
20 |
| Rated speed (r/min) |
1500 |
| Diesel engine |
Model |
ZS1105(18HP) |
| Nominal speed (r/min) |
2200 |
| Power(Kw) |
13.3 |
