Small Sampling Drilling Machine in Mining 5.7KW Core Drilling Rig ST 50

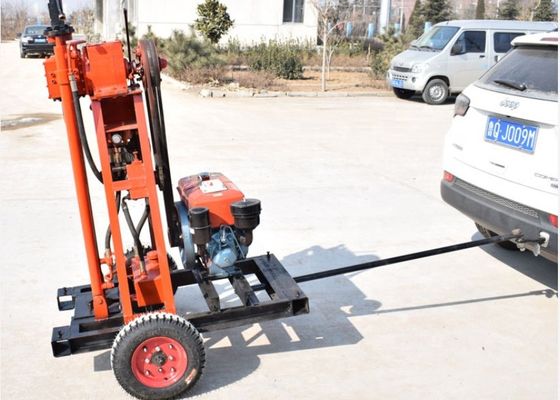

Large Image : Small Sampling Drilling Machine in Mining 5.7KW Core Drilling Rig ST 50

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Product Name:	ST 50 Core Drilling Rig	Warranty:	1 Year
Drilling Depth:	50m	Drill Pipe Diameter:	42mm
Condition:	New	Weight:	200KG
Power Type:	Diesel	Dimension(LWH):	1180×680×1600mm
Highlight:	50m core drilling rig , 50m Small Sampling core rig , 5.7KW Core Drilling Rig

ST 50 Core Drilling Rig - 5.7KW Portable Sampling Machine

Product Specifications

Attribute	Value
Product Name	ST 50 Core Drilling Rig
Warranty	1 Year
Drilling Depth	50m
Drill Pipe Diameter	42mm
Condition	New
Weight	200KG
Power Type	Diesel
Dimensions (L×W×H)	1180×680×1600mm

Product Overview

The ST 50 is a portable hydraulic core drilling rig designed for geological sampling in various terrains including plains, mountainous regions, and areas with limited access. Its compact design, light weight, and easy mobility make it ideal for railway, water conservancy, and construction projects requiring core drilling and geological surveys.

Technical Specifications

Drilling Depth	50 Meters
Drill Hole Diameter	42mm
Power Output	5.7 KW
Vertical Shaft Speed	50-130 RPM (R gear)
Rig Dimensions	1180×680×1600mm
Packaging	Standard

Key Features & Benefits

Hydraulic automatic feed mechanism enhances drilling efficiency while reducing manual labor
Ball holding mechanism replaces traditional chuck for safer, continuous operation
Bottom hole pressure gauge provides real-time monitoring of drilling conditions
Centralized control handles for intuitive operation
Lightweight modular design for easy transportation and setup in various terrains

Our Commitment

We maintain strict quality control to deliver reliable drilling equipment at competitive prices. Our team offers:

Custom drilling rig solutions (OEM/ODM available)
Long-term technical support and after-sales service
Dedicated partnership approach for mutual business success

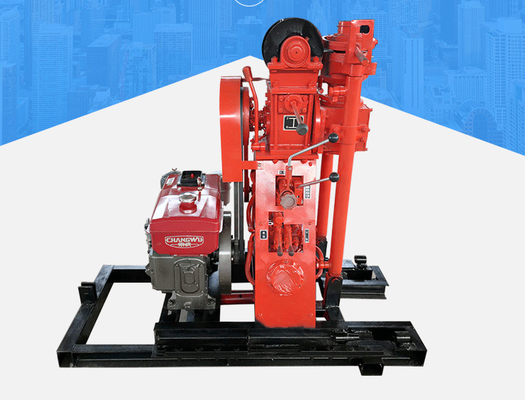

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
