Portable Small Geological 50m Exploration Drilling Rig

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

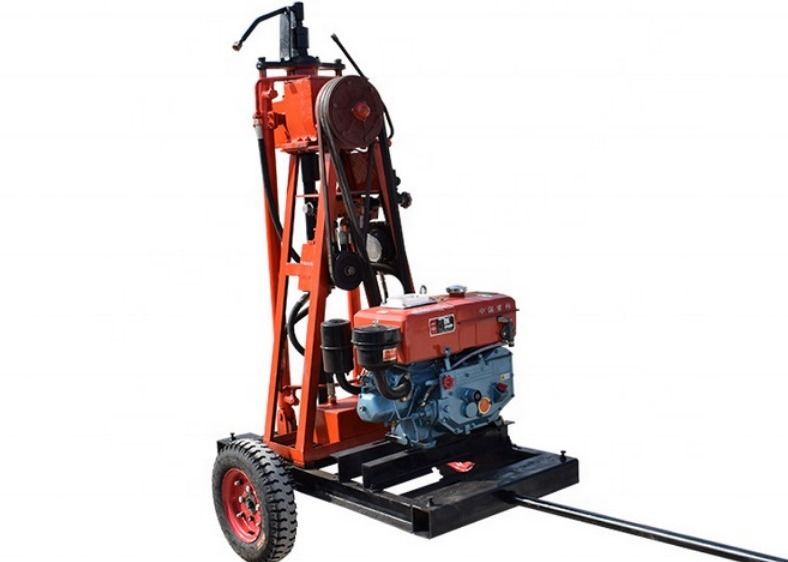

Portable Small Geological 50m Exploration Drilling Rig

Portable Small Geological 50m Exploration Drilling Rig
Portable Small Geological 50m Exploration Drilling Rig Portable Small Geological 50m Exploration Drilling Rig

Large Image :  Portable Small Geological 50m Exploration Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 50m Dimension(L*W*H): 1180×680×1600mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 200KG Hole Size Diameter: 73-108mm
High Light:

50m exploration drilling rig

,

50m geological drilling rig

,

42mm dia exploration drilling rig

Portable Small Geological Exploration Drilling Rig Mini Core Drill Rig


Introduction to Core Drill Rig

The Type 50 rig is a high, medium and low speed rig with hydraulic feed. Compared with other similar products, it has the advantages of light weight, simple structure, fast drilling speed, large diameter of coring sample, etc. It is the advanced portable hydraulic drilling machine in China. It is especially suitable for coring operations in mountainous areas, hills, rivers and other special difficult terrains, as well as engineering geological surveys for railways, hydropower, traffic, bridges, dam foundations, etc.; geological core drilling, physical exploration; small grouting holes, Drilling of blastholes; drilling of small wells.



Core Drill Rig​ parameters:



Type ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg



Core Drill Rig​ characteristic


1. Small and light, convenient for high altitude geological operations;
2. The hydraulic automatic feeding mechanism is adopted to improve the drilling efficiency and reduce the labor intensity of workers.
3. The vertical shaft box 4 sets ensure that the gyrator has sufficient rigidity to deal with complicated terrain conditions such as gravel layer and pebble layer;
4. It adopts national patent taper clutch, which has large transmission torque, convenient operation and maintenance-free.



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory, so we can keep the best price and good quality and good service for you.

Q: How long is your delivery time?

A: Generally it is 5-7 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it according to quantity.


Q: What is the after sale service type


A: Gurantee the machine quality for 1year. ( except the spare parts) , techncial training can by supplied also.

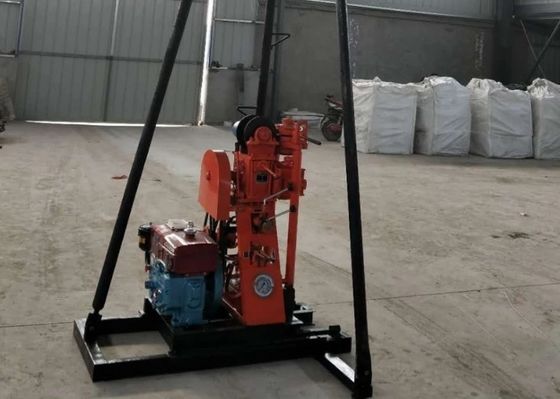

Portable Small Geological 50m Exploration Drilling Rig 0Portable Small Geological 50m Exploration Drilling Rig 1
