Small carrier farm transport portable and durable track transporter
Track Transporter Product Description:
This product is made of thickened material, which has large bearing capacity, is not easy to deform and can be used for a long time,Thickened Engineering Track Built in steel wire winding, plug-in steel plate has longer service life and stronger grip
Track Transporter Product Application:

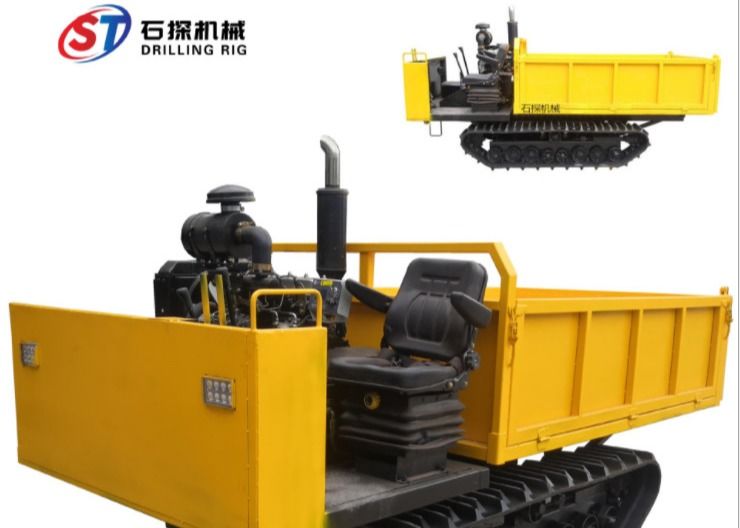

4 ton rated load hydraulic crawler dumper is a frequently-used of special track vehicle , it is widely used in agriculture, minerals, water conservancy and other large and medium-sized projects for earth, rock, coal and other displacement work. Crawler transport vehicles according to their product rated capacity (load capacity) can be divided into light crawler and heavy-duty crawler.
Main Features for 4 ton rated load hydraulic crawler dumper
1. Transport vehicles can operate freely in mud and icy roads
2. Self-unloading design, tracked walking, motor walking, greatly extended the use ability.
3. The specific size can be customized according to the requirements
4. Strong carrying capacity, large climbing ability, simple operation and easy maintenance.
| NO. |
Specification |
4Ton |
| 1 |
dumper truck weight |
3000kgs |
| 2 |
Max load |
4000kgs |
| 3 |
Max grade ability |
30° |
| 4 |
Total dimension |
3700*1750*1850mm |
| 5 |
Hopper dimension |
2200*1750*600mm |
| 6 |
Track shoe width |
320mm |
| 7 |
Track length |
5000mm |
| 8 |
Track height |
575mm |
| 9 |
Track outside width |
1600mm |
| 10 |
Track inside width |
960mm |
| 12 |
Track Pitch |
56mm |
| 13 |
Number of tracks |
90pcs |
| 14 |
Track grounding length |
1730mm |
| 15 |
Track type |
Mechanical engineering rubber tracks. |
| 16 |
Engine model |
WEICHAI POWER 4105 |
| 17 |
Cylinders |
4 units |
| 18 |
Horsepower |
82.2HP |
| 19 |
Engine power |
60kw |
| 20 |
Overturning cylinder |
Single/ double cylinder |
| 21 |
Hydraulic oil cylinder |
105mm |
| 22 |
Bore stroke |
750mm |
| 23 |
Gears |
Three forward gears and a reverse gear |
| 24 |
Thickness of floor plate |
4mm |
| 25 |
Thickness of side plates |
3mm |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
