70kw 260m Crawler Drill Machine For Water Of Mountains Project

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

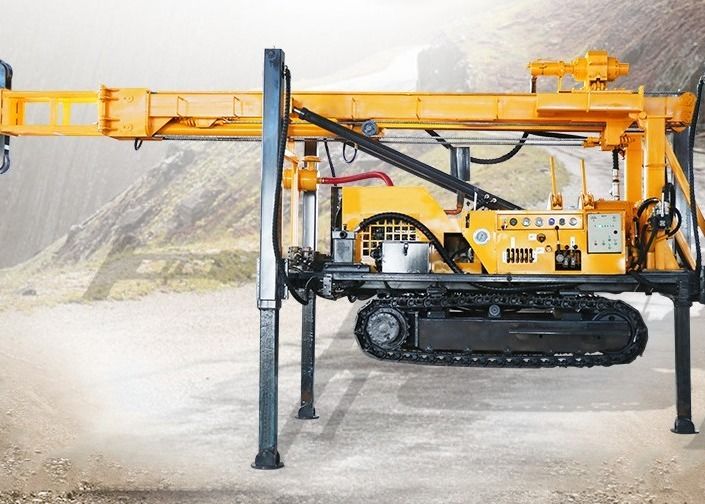

70kw 260m Crawler Drill Machine For Water Of Mountains Project

70kw 260m Crawler Drill Machine For Water Of Mountains Project
70kw 260m Crawler Drill Machine For Water Of Mountains Project 70kw 260m Crawler Drill Machine For Water Of Mountains Project

Large Image :  70kw 260m Crawler Drill Machine For Water Of Mountains Project

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO
Model Number: ST260
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Wooden case (bare)
Delivery Time: 5-8days
Payment Terms: L/C, D/P, D/P, T/T, Western Union
Supply Ability: 1000/month
Detailed Product Description
Drilling Depth: 260 Drilling Diameter: 105-260mm
After-sales Service Provided: Water Well Drilling Rig Warranty: 1 Year
Power Type: Diesel Color: Yellow
Weight: 6T Rotary Head Storke: 3.4m-6.0m
Rated Power: 55-132KW Optional Accessories: 70KW
Weight Of The Rig: 4m×1.7m×2.2m Air Pressure: 16-55m³/min
High Light:

260m crawler drill machine

,

260m crawler drilling rig

,

70kw crawler drill machine

Crawler Type 260m Water Well Drilling Machine For Water Of The Mountains Project





Brief introduction of ST-260 Water Well Drilling Rig



ST260 new generation multi-purpose DTH deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.



ST-260 Water Well Drilling Rig parameters



Drilling Depth 260m
Dia.hole φ105-260mm
Advance Length one time 6.6m
Working pressure 1.7-3.0MPa
Air consumption 17-35m³/min
Length of rod 1.5m,2m,3m,6m
Dia. Of rod φ76, φ89,φ102,φ114
Lifting power 24T
Rotation torque 8500-11000N.m
Rotation Speed 40-70r/min
Diesel Engine Yuchai
Engine Power 85Kw/2200rpm
Travelling speed 0-2.5 Km/h
Climb capacity 30°
Weight 9000kgs
Dimension 5900x2000x2850mm
Application Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer 4",5",6",8" Drill hammer or CIR110, 130, 150,170



Features of ST-260 Water Well Drilling Rig



1. The drilling rig makes the overall power loss small and the drilling cost low. 200m 300m 400m 500m 600m depth Truck crawler portable compressor water well drilling rig

2. The drill rig has more positive speed stages and 14-500r / min speed range, and the output torque is 13428-250N.m.

3. The drilling rig has 2 reverse speeds, which is convenient for handling accidents.

4. The air compressor drilling rig adopts a long-stroke double-speed mechanism, a mechanical

power head, and a power head stroke of 3400MM to improve drilling efficiency and reduce the occurrence of plugging and burning accidents.

5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.

6. The drilling rig machine has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.

7. The crawler water drilling rig machine chassis is adopted, and the trip of the outrigger cylinder can be automatically loaded for 1.5m, which is convenient for relocation and transportation.

8. The drill rig reserves some functional interfaces in the hydraulic system, and can expand the functions according to the technological requirements of different users.

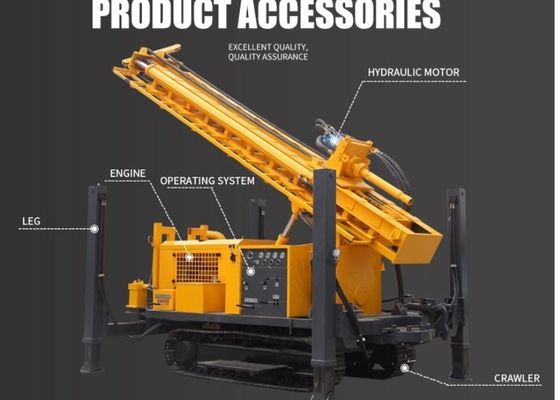

70kw 260m Crawler Drill Machine For Water Of Mountains Project 070kw 260m Crawler Drill Machine For Water Of Mountains Project 170kw 260m Crawler Drill Machine For Water Of Mountains Project 270kw 260m Crawler Drill Machine For Water Of Mountains Project 3
