50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig

50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig
50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig 50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig

Large Image :  50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 50m Dimension(L*W*H): 1180×680×1600mm
Drill Pipe Diameter: 42mm Condition: New
Weight: 200KG Hole Size Diameter: 73-108mm
High Light:

Hydraulic Core Drilling Rig

,

50 Meters Core Drilling Rig

,

42mm Pipe Core Drilling Rig

Geological Exploration Drilling Rig Core Drilling Rig Deep Sampling Machine 50 Meters Sampling Hydraulic Drilling


Introduction to Core Drill Rig


Engineering geological survey of railways, hydropower, transportation, bridges, dam foundations and other buildings; geological

core drilling, physical survey; drilling of small grouting holes, blast holes, and small water wells



Core Drill Rig​ parameters:



Type ST50 drilling rig
Drilling depth (m) The max. 50 meter
Hole size diameter 73-108mm
Drill pipe diameter 42mm
Vertical spindle speed 70-650
Reverse rotation speed 50-130
Power 5.7KW
Outsize 1180×680×1600mm

Weight

(including Gasoline engine )

208kg



Direction for use



The ST50 hydraulic drilling rig is based on the original FY-50 drilling rig. It adds a winch, a forward and backward
shifter,
and a tower. It is more practical and convenient. Compared with other similar products, the hydraulic high, medium, and low speed
drilling rig has light weight, simple structure, and fast drilling speed. It has the advantages of large core sample diameter and
other advantages. It is currently the domestic advanced portable hydraulic drilling rig, which is especially suitable for the core
coring operation in special difficult terrain such as mountains, hills and rivers

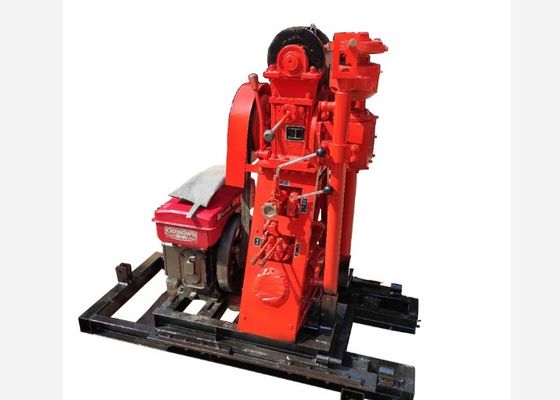

50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig 0

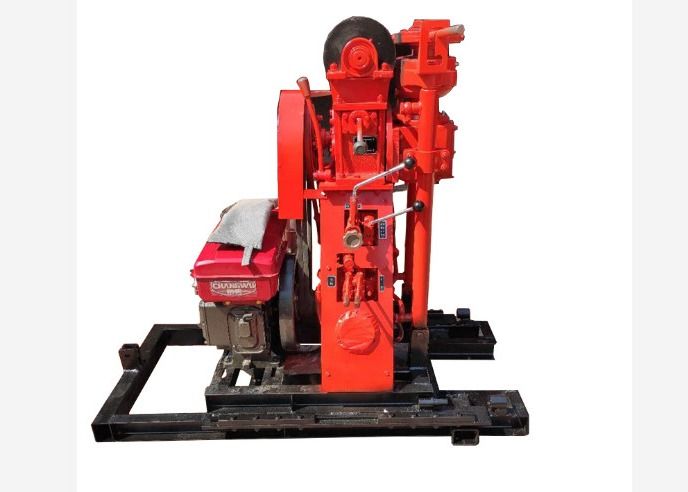

50 Meters Sampling Hydraulic 42mm pipe Core Drilling Rig 1
