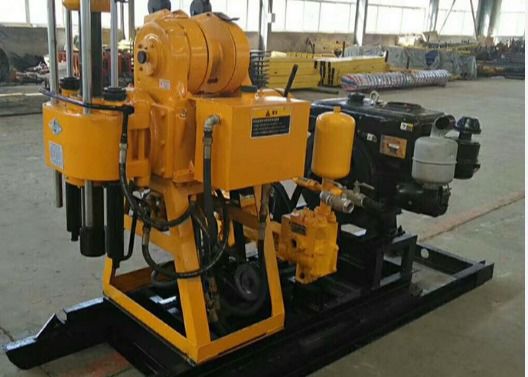

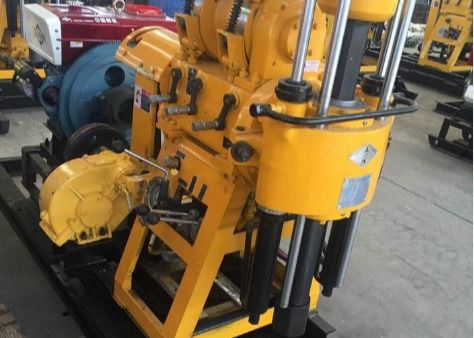

Deep Rock 100m 12.5Mpa 18KW Water Well Drilling Rig

Deep Rock 100m 12.5Mpa 18KW Water Well Drilling Rig
Deep Rock 100m 12.5Mpa 18KW Water Well Drilling Rig Deep Rock 100m 12.5Mpa 18KW Water Well Drilling Rig

Large Image :  Deep Rock 100m 12.5Mpa 18KW Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000set/year
Detailed Product Description
Type: Geological Drilling Rig Machine Power Type: Diesel
Usage: Water Well,railways, Core Drilling Drilling Depth: 100m
Dimension(L*W*H): 1640*1030*1440mm Drill Pipe Diameter: 42mm
Borehole Dip Angle: 90°~75 Spindle Speed: 142、285、570(r/min)
Model: YBC-12/125 Rated Pressure: 12.5Mpa
Model(diesel Engine): 1105 Rated Power: 18KW
WEIGHT: AROUND500KG Spindle Stroke: 450kmm
High Light:

100m water well drilling rig

,

12.5mpa water well drilling rig

,

18kw water well drilling rig

New Arrival Deep Rock Water Well Drilling Machine/ Oil Drilling Equipment





Description of water well drilling machine:



The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.Drilling bits can be chosen according to different strata .



Geological Drilling Rig Machine technical parameter



Drilling Rig
Drilling diameter(mm) 110
Drilling depth (m) 100
Drill pipe diameter (mm) 42
Drilling angle(°) 90~75
Equipment size(L * B * H) 1640* 1030 * 1440 (mm)
Rig weight (except engine) 500
Gyrator
Spindle speed (four gear) (r/min) 142,285,570
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 10
Reel speed (r/min) 55,110,220
Reel circumferential speed(m/s) 0.42,0.84 ,1.68
Reel diameter(mm) 145
Wire rope diameter(mm) 9.3
Wire rope density (m) 27
Brake diameter(mm) 230
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine ZS1100
Rated power (KW) 12.1
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160M - 4



Features of water well drilling machine



1. hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4. The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas
