pneumatic and mud pump 1.25mpa portable hydraulic water well drilling rig

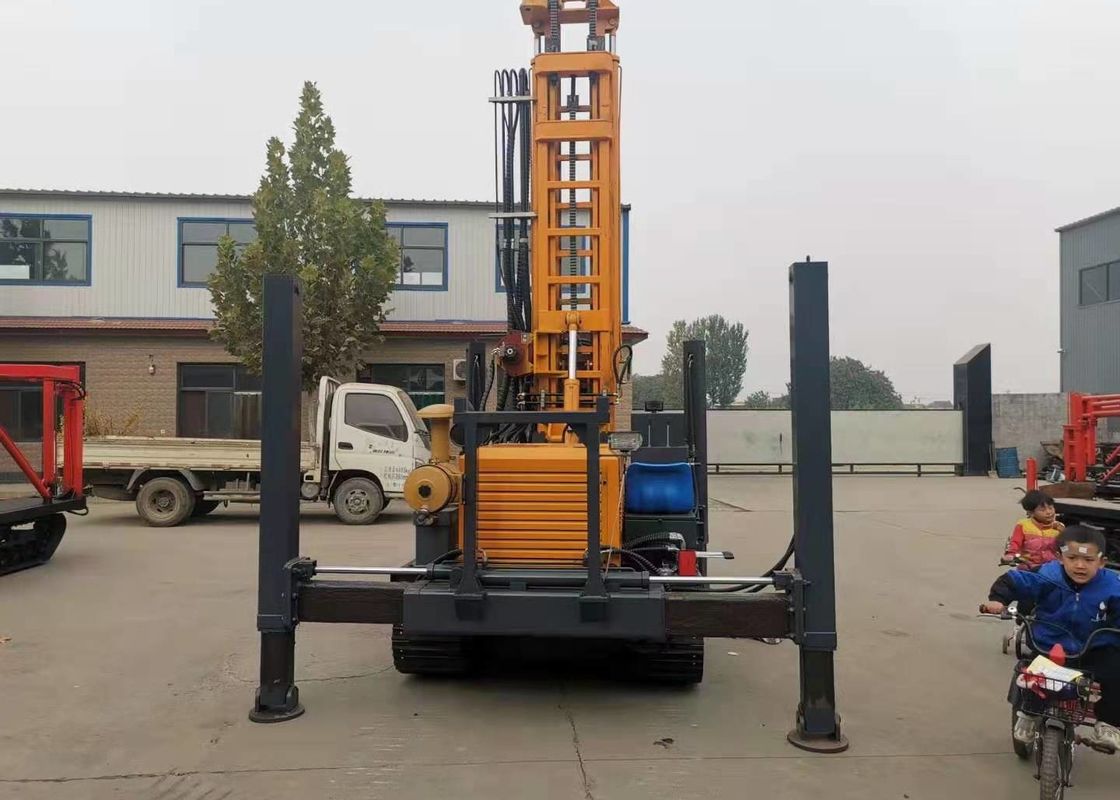

Large Image : pneumatic and mud pump 1.25mpa portable hydraulic water well drilling rig

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	ST350

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	A detailed discussion
Packaging Details:	Wooden case or naked
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, D/P, T/T, Western Union
Supply Ability:	100000/yes

Contact Now

Detailed Product Description

Type:	Water Well Drill Rig	Application:	Drilling Well,hammer For Drills
Air Pressure:	1.25-3.5Mpa	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year	Weight:	9800KG
Power:	92K	Usage:	Water Well
Hole Diameter:	140-305mm	Drill Rod Length:	1.5-6
Drilling Depth:	350M	Rod Length:	6M
Highlight:	pneumatic portable hydraulic water well drilling rig , 1.25mpa portable hydraulic water well drilling rig , 1.25mpa water well drilling rig

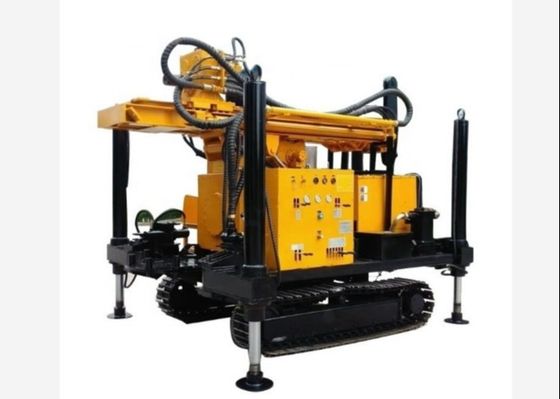

ST350 Type Pneumatic And Mud Pump Water Well Drill Rig

Introduction of ST350 pneumatic drilling rig

ST350 type water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc., It is especially suitable for water intake in mountainous and rocky strata.

Parameters of 350 water well drilling rig

Technical Parameters of ST300 water well drilling rig
type	ST350
The weight	9.8T
Dimension	6m×2m×2.5m
The hole diameter	105-305mm
Drilling depth	350m
One-time advance length	6m
Walking speed	2.5KM/H
Climbing angles	30
Power	92KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Characteristics of pneumatic drilling rig

The rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.

Rig advantage

This series of drill rig adopts a excavator crawler chassis and has strong off-road performance. The independent module design allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
