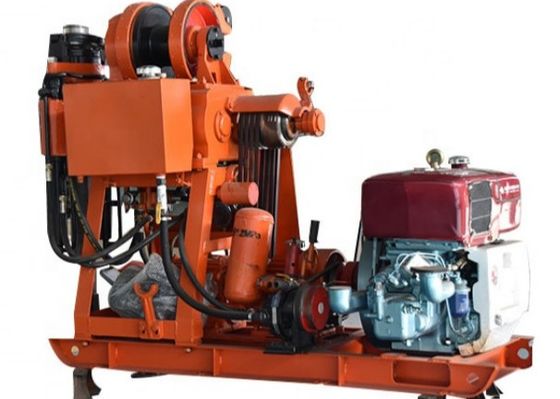

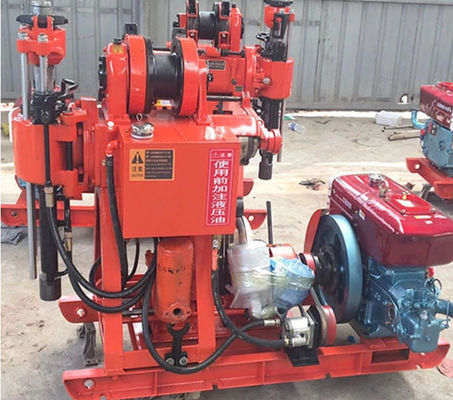

180m Depth XY-1A Core Drilling Rig Water Well Drilling Rig Machine For Engineering Investigation
Introduction of Core drilling rig
Oil pressure feeding system to improve drilling efficiency and lighten labor strength. It configures upper ball clip clamping mechanism together with 6 sides' active drilling rod to practice pole collapse when running, high efficiency, safe and reliable.Centralized handles and convenient operation.Compact structure, small volume, light weight, strong resolvability and easy to move, which is suitable to work in plain or mountain area.
Core drilling rig parameters
| XY-1A Type |
| Drill |
Swivel Head |
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42.50mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine) |
1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
18KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |
The main features of core drill rig are as follows
Drilling and various concrete structure peep hole in solid ore bed survey and engineering geological prospecting.According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.When hole termination are 75mm and 46mm separately, the rating drilling depth is 100m and 180m. The max. depth can not exceed 110% of each drilling, the maximum boring diameter can be 150mm.
FAQ
1. Q: Are you a factory or a trading company?
A: We are trading companies and manufacturers. Extensive experience in machinery and equipment.
2. Q: How long is your delivery time?
A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you
want to customize the machines.
3. Q: What are your payment terms?
A: We accept L/C, T/T and Western union is available. etc.
4. Q:Besides machines,can you provide tools of machines?
A:Yes.Both machines and tools can be provided in our factory.Our company has an independent spare-part departments.If you just only need tools of your machines,we can also provide you even if your machine is originally not from our factory. Just tell us your needs and we can make a free design for you.
5.Q: Is it possible to manufacture products according to the drawings provided by customers?
A: Yes, we can provide customized services, you can provide us with ideas or drawings, and we will do our best to meet
your requirements.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
