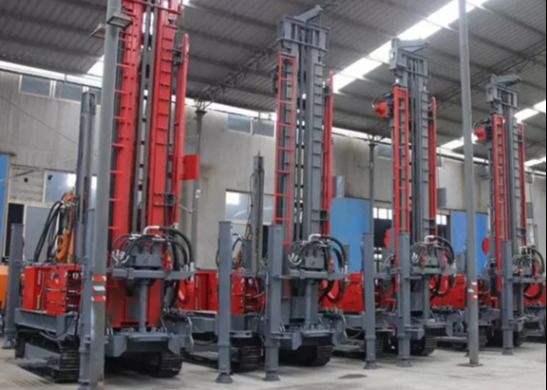

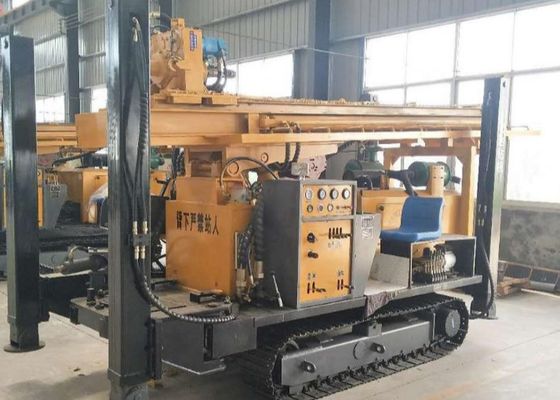

ST-260 Water Well Drilling Rig parameters
| Drilling Depth |
260m |
| Dia.hole |
φ105-260mm |
| Advance Length one time |
6.6m |
| Working pressure |
1.7-3.0MPa |
| Air consumption |
17-35m³/min |
| Length of rod |
1.5m,2m,3m,6m |
| Dia. Of rod |
φ76, φ89,φ102,φ114 |
| Lifting power |
24T |
| Rotation torque |
8500-11000N.m |
| Rotation Speed |
40-70r/min |
| Diesel Engine |
Yuchai |
| Engine Power |
85Kw/2200rpm |
| Travelling speed |
0-2.5 Km/h |
| Climb capacity |
30° |
| Weight |
9000kgs |
| Dimension |
5900x2000x2850mm |
| Application |
Complicated geological conditions:Rock,Mud,Sand etc. |
| Drilling Way |
Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling |
| Dth Hammer |
4",5",6",8" Drill hammer or CIR110, 130, 150,170 |
Features of ST-260 Water Well Drilling Rig
1) Engine: adopts the famous brand Guangxi Yuchai 92Kw turbocharged version
2) Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life
3) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
5) Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement
6) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
7) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work
8) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
