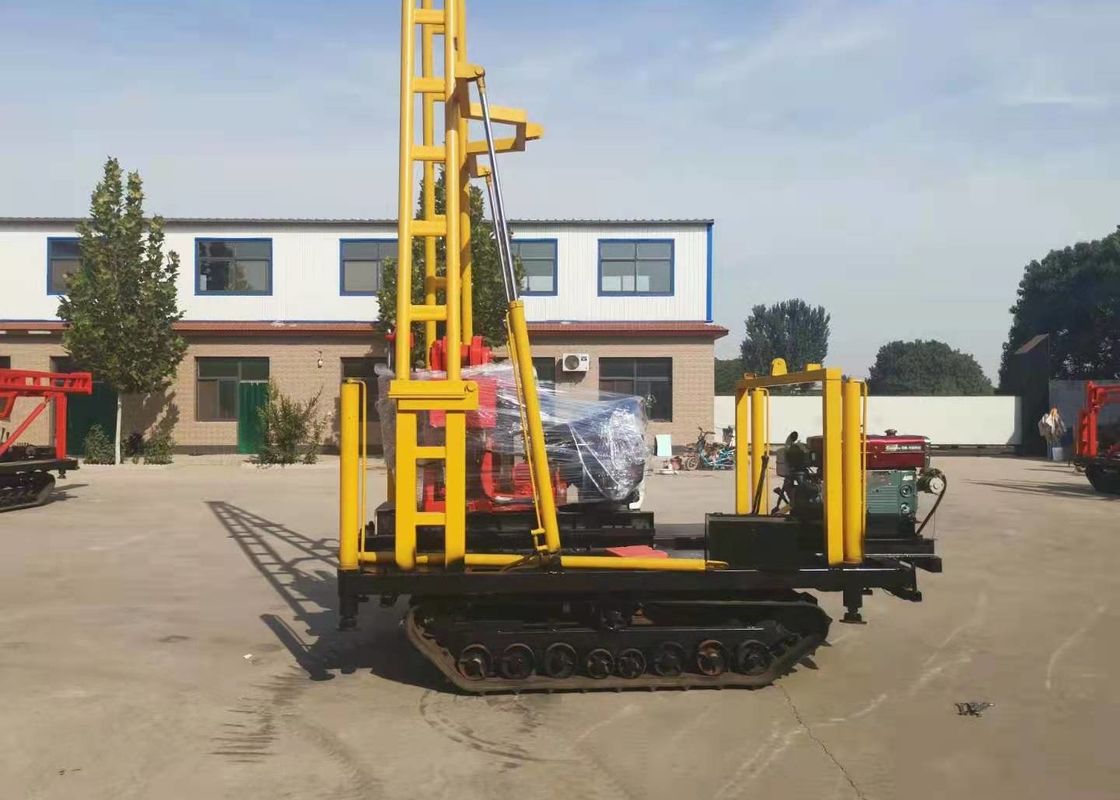

89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig

Large Image : 89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	GK-200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD6800-18000/set
Packaging Details:	wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Type:	Horizontal Directional Drilling	Feature:	Multifunctional
Voltage:	220/380	Application:	Water Wells Drilling
Color:	Red /yellow	Name:	Core Drilling Machine
Drill Rod Diameter:	42.50.89	Drilling Depth:	200m
Drilling Hole Inclination:	90 °-75°	The Machine Weight:	620kg
Highlight:	89mm rod crawler drill rig , 200m crawler mounted drill rig , 0.32m/s crawler mounted drill rig

Crawler Coal Mine Quarry Drilling Machine For Rock Stone Crawler Mounted Drill Rig

Crawler Mounted Drill Rig Product Description:

Mainly applies to drill water well for farm /industry irrigating, fresh water drinking or anywhere need fresh water. Geological/Geo-technical explorations, earth sample taking, etc.

Crawler Mounted Drill Rig parameters:

Unity machine parameter
Drilling depth	30-200m
Drill rod diameter	50 42mm
End hole diameter	75 46mm
Max. open hole diameter	220mm
Drilling hole inclination	90 °-75°
The machine dimension	2.1x0.9x1.3m
The machine weight	610kg
Vertical shaft
Vertical spindle speed	130 300 480 730 830 1045r/min
Vertical spindle stroke	450mm
Hoist
The biggest single rope lift weight	1600kg
Single rope winding speed	1.06 0.67 0.32m/s
wire rope diameter	13mm
Wire rope capacity	35m
The brake width	50mm
The brake diameter	230mm
Mud pump
Type	Horizontal single cylinder double function
Flow	95 77L/min
Maximum pressure	2.5Mpa
Working pressure	1.2Mpa

Crawler Mounted Drill Rig Main Features

1> It drills up to 500m deep and diameter is 70mm-400mm.
2> Drill through marble, soil, sand, gravel, rock, semi-hard rock, hard rock,marble, quarry, any any other hard ground, etc.
3> Hydraulic system, trailer / crawler mounted .
4> Power can be diesel engine or electric engine. 39-65KW.
5> compact structure, big torque, strong lifting capacity and easy being operated.

89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig 0
