Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Name: | Water Well Drilling Rig |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well | Voltage: | 380V |
| Power(W): | 15KW | Weight: | 1200KGS |
| Other Name: | Drill Rig | Drill Rod Diameter: | 42, 50mm |
| Condition: | New | ||
| High Light: | Borehole Small Water Well Drilling Rig,Diesel Small Water Well Drilling Rig,15kw portable water well drilling rig |
||

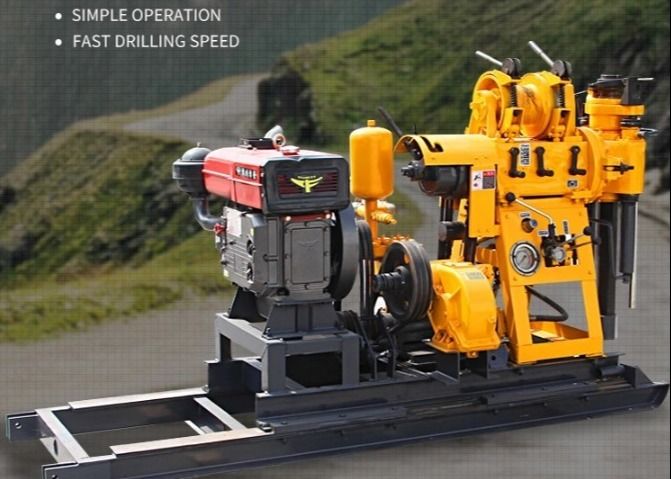

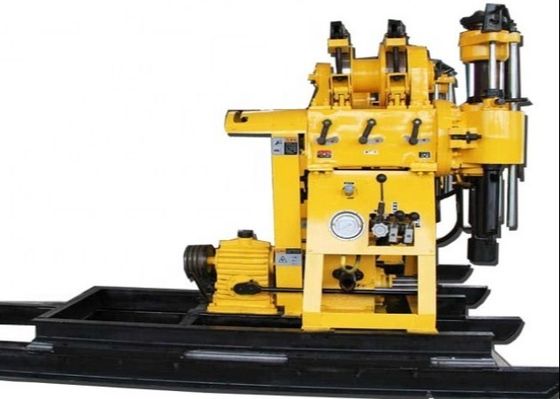

Portable Diesel Borehole Small Water Well Drilling Rig Machine
Description of water well drilling machine:
The Water Well Drilling Rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.
Drilling bits can be chosen according to different strata .
Water Well Drill Rig parameters
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
Features of water well drilling machine
1. hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.
2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4. The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas
Pre-sale Service
1, 24 hours online .Your inquiry will be quick reply on 24 hours .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2,Professionally introduction,details pictures and working video to show machine
