| Type: | Geological Drilling Rig Machine | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well,railways, Core Drilling | Drilling Depth: | 100m |
| Dimension(L*W*H): | 1640*1030*1440mm | Drill Pipe Diameter: | 42mm |
| Borehole Dip Angle: | 90°~75 | Spindle Speed: | 142、285、570（r/min) |
| Model: | YBC-12/125 | Rated Pressure: | 12.5Mpa |
| Model(diesel Engine）: | 1105 | Rated Power: | 18KW |
| WEIGHT: | AROUND500KG | Spindle Stroke: | 450kmm |
| High Light: | Borehole Small Water Well Drilling Machine,XY-1 Water Well Drilling Machine,Rock Core Water Well Drilling Machine |
||

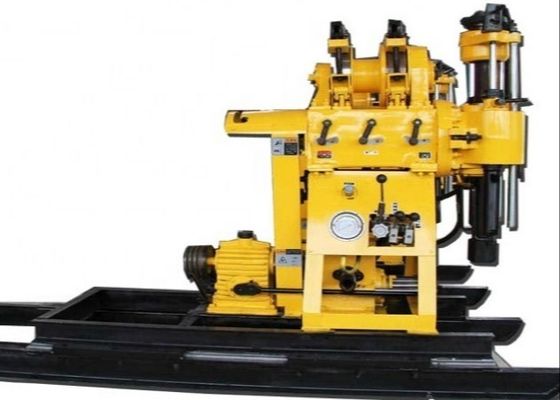

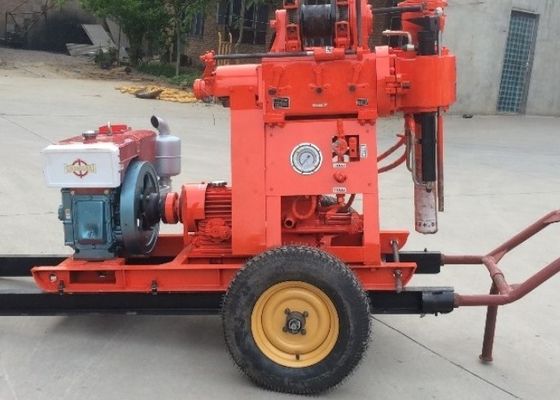

XY-1 Small Borehole Rock Core Water Well Drilling Rigs Manufacturer
Applications of Water Well Drilling Rig
XY-1 Water well machine is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.
Water Well Drilling Rig technical parameter
| Drilling Rig | |
| Drilling diameter(mm) | 110 |
| Drilling depth (m) | 100 |
| Drill pipe diameter (mm) | 42 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1640* 1030 * 1440 (mm) |
| Rig weight (except engine) | 500 |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 142,285,570 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 0.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope)(KN) | 10 |
| Reel speed (r/min) | 55,110,220 |
| Reel circumferential speed(m/s) | 0.42,0.84 ,1.68 |
| Reel diameter(mm) | 145 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 27 |
| Brake diameter(mm) | 230 |
| Brake band width (mm) | 50 |
| Water pump | |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95(77) |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| The maximum allowable pressure (Mpa) | 1.2 |
| Oil pump | |
| Oil pump type | Gear pump |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | ZS1100 |
| Rated power (KW) | 12.1 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 11 |
| Motor type | Y160M - 4 |
