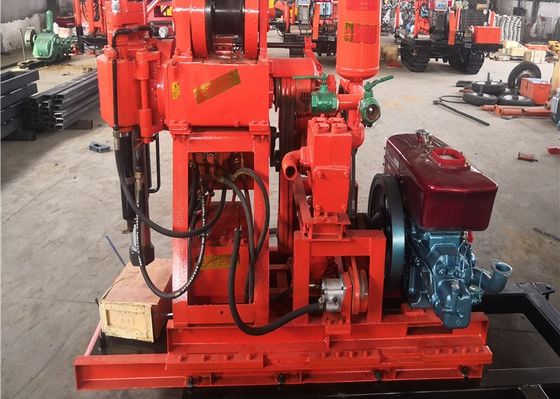

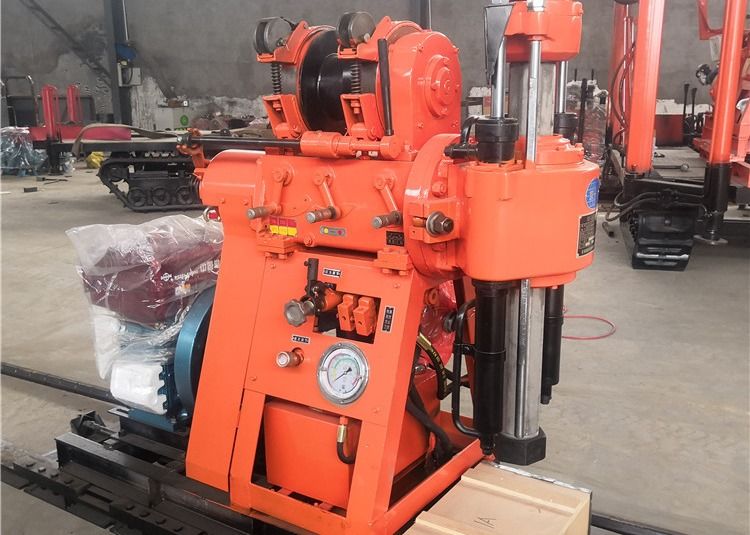

Engineering 150m Depth Core Drill Rig Hydraulic Diesel Powered

Engineering 150m Depth Core Drill Rig Hydraulic Diesel Powered
Engineering 150m Depth Core Drill Rig Hydraulic Diesel Powered Engineering 150m Depth Core Drill Rig Hydraulic Diesel Powered

Large Image :  Engineering 150m Depth Core Drill Rig Hydraulic Diesel Powered

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export package
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/year
Detailed Product Description
Product Name: OEM Drilling Rig Factory Supply XY-1A Engineering Core Drill Rig Power Type: Diesel
Weight:: 480kg Usage: Water Well,railways, Core Drilling
Drilling Depth: 150 M Dimension(L*W*H): 1620*970*1560mm
Drill Pipe Diameter: 42mm Borehole Dip Angle: 90°~75
Spindle Speed: 1010、790、470、295、140(r/min) Model: YBC-12/125
Rated Pressure: 12.5Mpa Model(diesel Engine): 1105
Rated Power: 18KW WEIGHT: AROUND 600KG
High Light:

engineering core drill rig

,

hydraulic diesel core drill rig

,

150m depth core drill rig

OEM Drilling Rig Factory Supply XY-1A Engineering Core Drill Rig





Introduction of OEM Drilling Rig Factory Supply XY-1A Engineering Core Drill Rig



Small core drill rig XY-1A water well drilling rig machine is a compact spindle drilling machine. Rotary drilling rig is mainly used for shallow hole core drilling with diamond or tungsten carbide bits. Geological drilling rig can also be used for engineering geological survey and injection in the fields of railway, highway,bridge, irrigation works, dam and etc. Easy to operate and maintain.



 XY-1A Engineering Core Drill Rig parameters



XY-1A
Drill Swivel Head

Drilling depth



Max.150m

Spindle speed



1010,790,470,295,140(r/min)

Hole diameter



Max.150m Spindle stroke 450kmm
Drill rod diameter 42.50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-12/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.25Mpa
Flow speed 8ml/r
Rated speed 1500r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1105
Hoisting drum revolution

121,76,36(r/min)



Rated power 18KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1620*970*1560mm



Main features of core drill rig are as follows



1.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
2.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal Kelly, which can be replaced without shutdown, high efficiency, safe and reliable.
3.A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.
4.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas



XY-1A Engineering Core Drill Rig FAQ

Q1.What is the main function of our hydraulic tricycle tractor water well drilling rig? Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What isyour terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.:Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
