Product Details:
Payment & Shipping Terms:
|
Product Name: | High Drilling Efficiency Factory Supply ST 350 Water Well Drilling Rig | Drilling Depth: | 350 M |
---|---|---|---|
Drilling Diameter: | 105-300mm | Warranty: | 1 Year |
Power Type: | Diesel | Color: | Yellow |
Weight: | 7T | Rotary Head Storke: | 3.4m-6.0m |
Rated Power: | 55-132KW | Optional Accessories: | 90KW |
Weight Of The Rig: | 4m×1.7m×2.2m | Air Pressure: | 16-55m³/min |
High Light: | Hydraulic Borehole Drilling Rig,Diesel Borehole Drilling Rig,Flexible Borehole Drilling Rig |

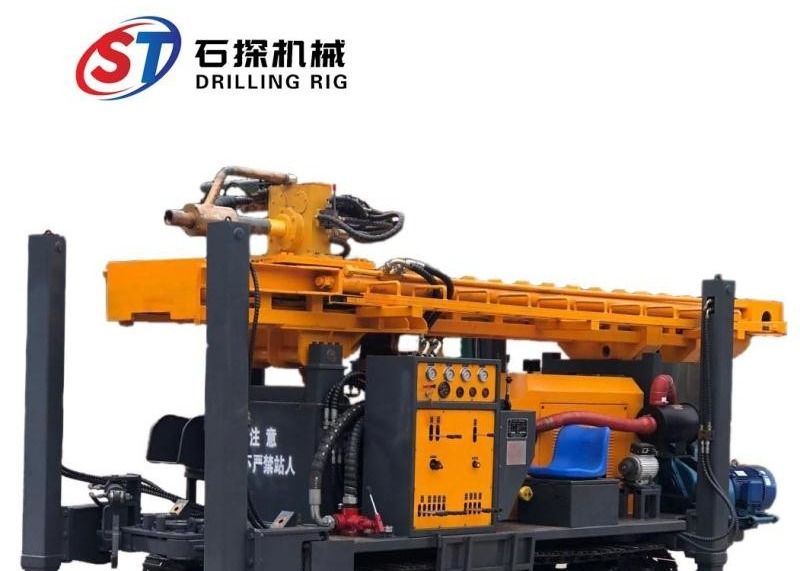

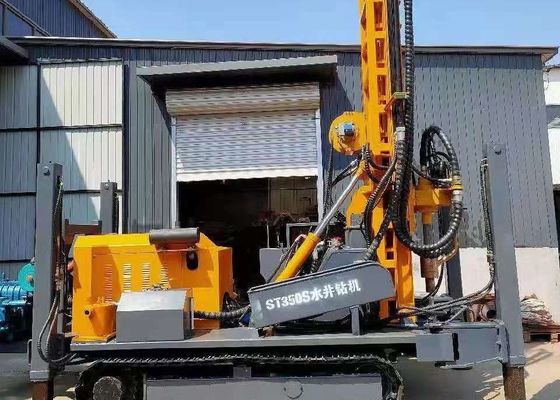

High Drilling Efficiency Factory Supply ST 350 Water Well Drilling Rig
Brief introduction of ST 350 Water Well Drilling Rig
ST300 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
ST 350 Water Well Drilling Rig parameters
Maximum drilling depth
|
350m
|
Drilling diameter
|
Φ105-Φ325mm
|
Recommended working wind pressure
|
1.2-3.5MPa
|
Recommended air consumption
|
16-55m3/min
|
Drill pipe Length
|
3m/6m
|
Drill pipe diameter
|
89mm/102mm
|
The maximum hoist capacity
|
16T
|
The maximum pushing force
|
6.5T
|
Fast marching speed
|
55m/min
|
Fast lifting speed
|
30m/min
|
Max. rotating speed
|
80/160r/min
|
Max. rotating torque
|
7000/3500Nm
|
Drilling speed
|
10-35m/h
|
Hoist capacity of winch
|
1.1T/2.5T( * Double winch selection)
|
Engine power
|
73.5Kmh (100hp)
|
Driving speed
|
2.5km/h
|
Clambing ability
|
21°
|
Landing leg stroke
|
1.6m
|
Loading width
|
2700mm
|
|
Advantages of ST 350 Water Well Drilling Rig
The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
